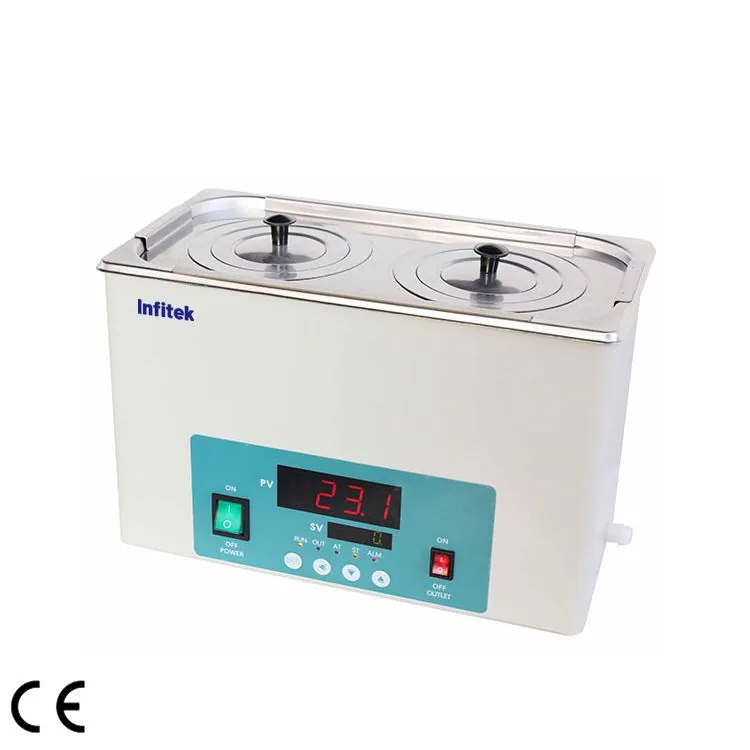

Infitek Water Bath, WB-1R2H-7
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Water Bath, WB-1R2H-7 is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: WB-1R2H-7. Published details include Function / Temp. Range: RT+5～100℃; Specification / Volume: 6.1L. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | WB-1R2H-7 |
|---|---|
| Classification Specifications | 1 row & 2 holes |
| Heating Mode | Nature water convection heat transfer |
| Function / Temp. Range | RT+5～100℃ |
| Function / Temp. Resolution Ratio | 0.1℃ |
| Function / Temp. Motion | ±0.5℃ |
| Function / Temp. Uniformity | ±1.0℃ |
| Structure / Inner Chamber | Stainless steel |
| Structure / Outer Shell | Cold-rolled steel plate, Surface electrostatic spraying |
| Structure / Heater | Stainless steel heating tube |
| Structure / Power Rating | 0.5kW |
| Controller / Temp. Control Mode | PID |
| Controller / Temp. Setting Mode | Touch button setting |
| Controller / Temp. Display Mode | Measuring temperature: displayed on the upper row of the three-digit LED; Setting temperature: displayed on the lower row of the three-digit LED |
| Controller / Timer | 0～9999min（with timing wait function） |
| Controller / Operation Function | Fixed temperature operation, |
| Controller / Operation Function | timing function, auto stop. |
| Controller / Additional Function | Deviation Correction, menu key locked, power failure back-up, power-off memory |
| Controller / Sensor | NTC |
| Safety Device | Over temperature alarm |
| Specification / Inner Chamber size(W*L*H)(mm)） | 300*135*150 |
| Specification / Exterior size(W*L*H)(mm) | 318*168*210 |
| Specification / Packing size(W*L*H)(mm) | 390*240*280 |
| Specification / Volume | 6.1L |
| Specification / Load per rack | 5kg |
| Specification / Shelf Number | 1 |
| Specification / Power Supply（50/60Hz）Current rating | AC220V/2.3A |
| Specification / NW/GW (kg） | 4.5/5 |
Manufacturer catalogue checked 2026-09-28.
