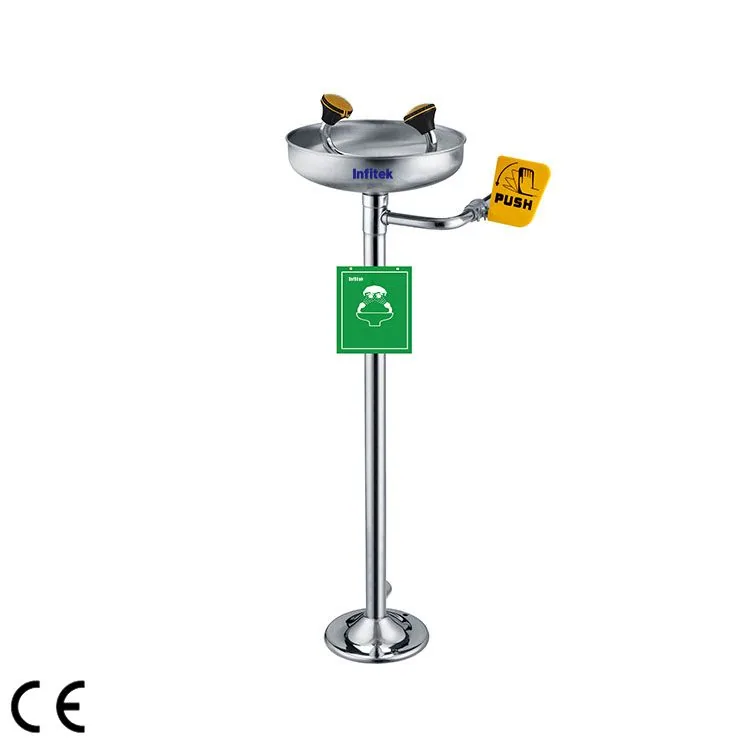

Infitek Vertical Emergency Eye Wash, EEWS-322
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Vertical Emergency Eye Wash, EEWS-322 is listed in VVON's laboratory furniture storage & safety range for Bangladesh. Published models: EEWS-322. Match room layout, materials, storage compatibility and utility connections. For a quotation, send the room layout, dimensions, chemicals or stored items and utility connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | EEWS-322 |
|---|---|
| Materials | SS304 |
| Surface finishing | fine polishing |
| Function | eye and face washing |
| Switching ball valve | two-piece ball valve |
| Pipe diameter | 48mm/38mm |
| Nominal pressure | 1.0Mpa |
| Working pressure | 0.2~0.4Mpa |
| Test pressure | 1.5Mpa |
| Working environment temperature | 0°C~40°C |
| Eye wash/face wash water flow | ≥11.4 L/min |
| Flow of eye wash | ≥1.5 L/min |
| Eye wash bowl | 300mm straight edge design, gather water, prevent splash |
| Dust cover | integrated design of main body, not easy to lose |
| Inner size | G1/2” male |
| Outlet size | Rp1-1/4” female |
| Inlet height | 780mm/753mm |
| Outlet height | 108mm/86mm |
| Package Dimension (W*D*H) (mm) | 800*380*170 |
| G.W.(kg) | 6.5 |
| Product features | After the use of eye wash and face wash is stopped, the water in the pipeline will be drained automatically to achieve the purpose of anti-freezing. |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
