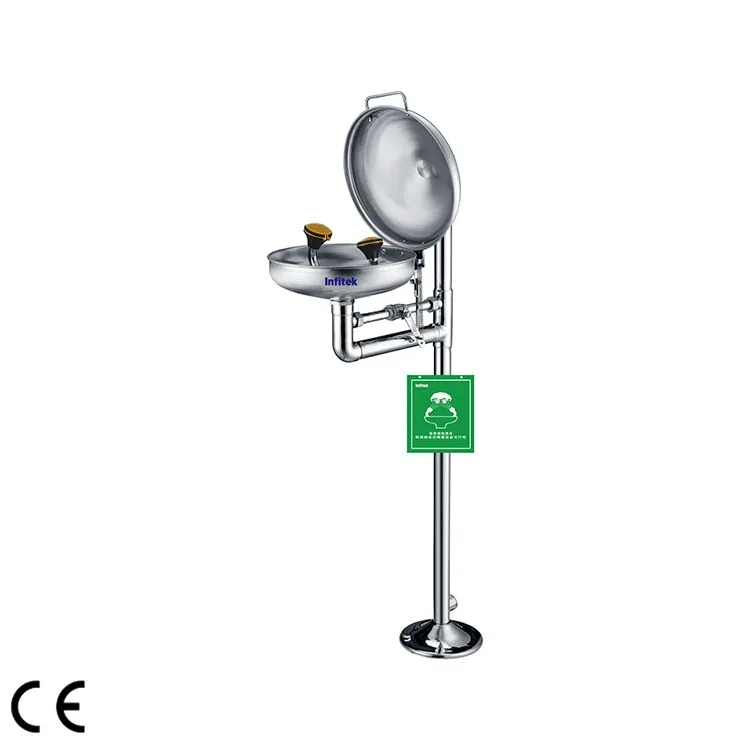

Infitek Vertical emergency eye wash, EEWS-315
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Vertical emergency eye wash, EEWS-315 is listed in VVON's laboratory furniture storage & safety range for Bangladesh. Match room layout, materials, storage compatibility and utility connections. For a quotation, send the room layout, dimensions, chemicals or stored items and utility connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Materials | SS304 |
|---|---|
| Surface finishing | Fine polishing |
| Function | Eye and face washing |
| Switching ball valve | Two-piece ball valve |
| Stainless steel dust cover | Integrated cover, effective dust isolation |
| Pipe diameter | 38mm |
| Nominal pressure | 1.0Mpa |
| Working pressure | 0.2~0.4Mpa |
| Test pressure | 1.5Mpa |
| Working environment temperature | 0°C~40°C |
| Eye wash/face wash water flow | ≥11.4 L/min |
| Flow of eye wash | ≥1.5 L/min |
| Eye wash bowl | 300mm straight edge design, gather water, prevent splash |
| Dust cover | Integrated design of main body, not easy to lose |
| Inner size | Rp1” female |
| Outlet size | Rp1” female |
| Inlet height | 1065mm |
| Outlet height | 90mm |
Manufacturer catalogue checked 2026-09-28.
