Brand: Infitek | Category: Scientific & Laboratory Equipment

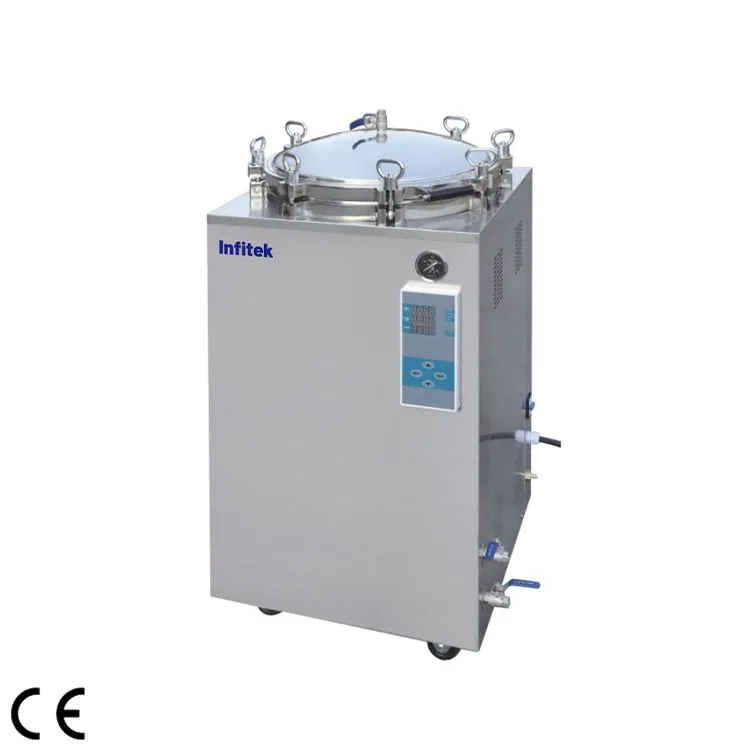

Infitek Vertical Counter Pressure Autoclave / Class N Autoclave, STV-LDC Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STV-35LDC, STV-50LDC, STV-75LDC, STV-100LDC, STV-150LDC. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | STV-35LDC | STV-50LDC | STV-75LDC | STV-100LDC | STV-150LDC |
|---|---|---|---|---|---|
| Volume | 35L φ318*450mm | 50L φ340*550mm | 75L φ400*600mm | 100L φ440*650mm | 150L φ510*740mm |
| Design Pressure | 0.3MPa | 0.3MPa | 0.3MPa | 0.3MPa | 0.3MPa |
| Design Temperature | 150℃ | 150℃ | 150℃ | 150℃ | 150℃ |
| Max.Working Pressure | 0.25MPa | 0.25MPa | 0.25MPa | 0.25MPa | 0.25MPa |
| Max.Working Temperature | 138℃ | 138℃ | 138℃ | 138℃ | 138℃ |
| Timing Range | 0~99min | 0~99min | 0~99min | 0~99min | 0~99min |
| Temperature Range | 105~134℃ | 105~134℃ | 105~134℃ | 105~134℃ | 105~134℃ |
| Electricity | AC 220V/50Hz | AC 220V/50Hz | AC 220V/50Hz | AC 220V/50Hz | AC 220V/50Hz |
| Power | 2.5kW | 3kW | 4.5kW | 4.5kW | 6kW |
| External Dimension (W*D*H) | 470*450*840mm | 520*500*970mm | 550*530*990mm | 580*560*1060mm | 660*640*1130mm |
| N.W. / G.W. | 47kg/64kg | 56kg/77kg | 70kg/90kg | 76kg/98kg | 111kg/138kg |
| Package Dimension (W*D*H) | 540*540*1000mm | 580*580*1130mm | 610*610*1160mm | 640*640*1220mm | 730*730*1290mm |
Manufacturer catalogue checked 2026-09-28.
