Brand: Infitek | Category: Scientific & Laboratory Equipment

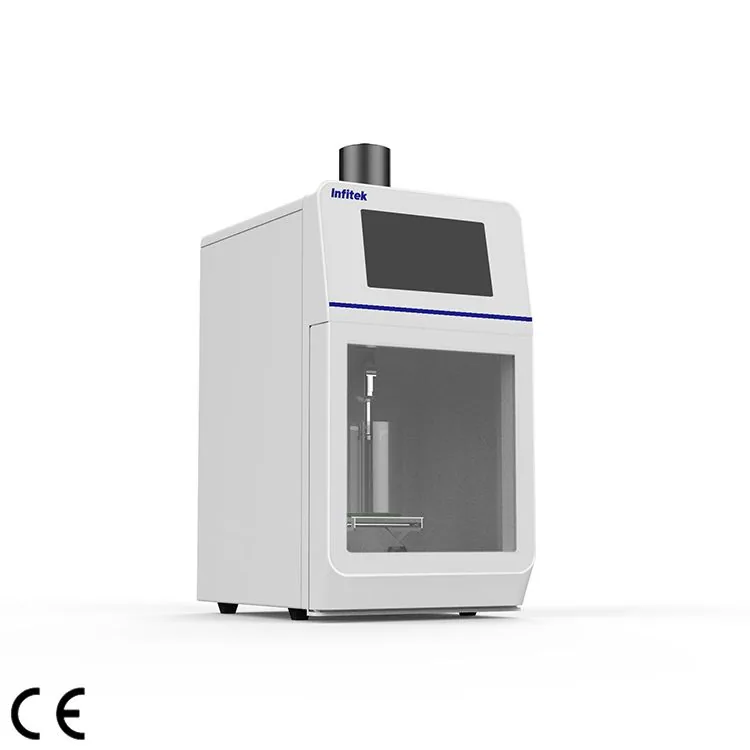

Infitek Ultrasonic Cell Disruptor, USCG Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: USCG-300, USCG-1500, USCG-1800, USCG-2000. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | USCG-300 | USCG-1500 | USCG-1800 | USCG-2000 |
|---|---|---|---|---|
| Power Supply | 110V/AC or 220V/AC ,50-60Hz | 110V/AC or 220V/AC ,50-60Hz | 110V/AC or 220V/AC ,50-60Hz | 110V/AC or 220V/AC ,50-60Hz |
| Net Power Output | 300W | 1500W | 1800W | 2000W |
| Nominal Frequency | 19-26KHz, real-time display (19-26KHzAutomatic Frequency Scanning and Checking) | 19-26KHz, real-time display (19-26KHzAutomatic Frequency Scanning and Checking) | 19-26KHz, real-time display (19-26KHzAutomatic Frequency Scanning and Checking) | 19-26KHz, real-time display (19-26KHzAutomatic Frequency Scanning and Checking) |
| Timer | 1S~99H can be set | 1S~99H can be set | 1S~99H can be set | 1S~99H can be set |
| Power Regulation | 1%-100%, 1% progressive | 1%-100%, 1% progressive | 1%-100%, 1% progressive | 1%-100%, 1% progressive |
| Temperature warning setting | 1-200 ℃ | 1-200 ℃ | 1-200 ℃ | 1-200 ℃ |
| Store Data | 99 Groups (Set, Store, Check in Work Status) | 99 Groups (Set, Store, Check in Work Status) | 99 Groups (Set, Store, Check in Work Status) | 99 Groups (Set, Store, Check in Work Status) |
| Pulse interval time | 1S ~ 60Min can be set and stored | 1S ~ 60Min can be set and stored | 1S ~ 60Min can be set and stored | 1S ~ 60Min can be set and stored |
| Operation Mode | Pulse、Time、continuous | Pulse、Time、continuous | Pulse、Time、continuous | Pulse、Time、continuous |
| LCD Display Screen | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen |
| Operational Language | English | English | English | English |
| Screen display parameters | Temperature , frequency , probe settings, settings, user group, manufacturer login interface, parameter view, power percentage, sweep frequency detection | Temperature , frequency , probe settings, settings, user group, manufacturer login interface, parameter view, power percentage, sweep frequency detection | Temperature , frequency , probe settings, settings, user group, manufacturer login interface, parameter view, power percentage, sweep frequency detection | Temperature , frequency , probe settings, settings, user group, manufacturer login interface, parameter view, power percentage, sweep frequency detection |
| Running Interface Displays | Total running time, working time, pause time, overload temperature, power output ratio, working mode, program save key | Total running time, working time, pause time, overload temperature, power output ratio, working mode, program save key | Total running time, working time, pause time, overload temperature, power output ratio, working mode, program save key | Total running time, working time, pause time, overload temperature, power output ratio, working mode, program save key |
| Display light | With ultrasonic output running display light, you can observe the ultrasonic output state at any time | With ultrasonic output running display light, you can observe the ultrasonic output state at any time | With ultrasonic output running display light, you can observe the ultrasonic output state at any time | With ultrasonic output running display light, you can observe the ultrasonic output state at any time |
| Size | 18.5×12.6×20.6in (470×320×525mm) | 18.5×12.6×20.6in (470×320×525mm) | 18.5×12.6×20.6in (470×320×525mm) | 18.5×12.6×20.6in (470×320×525mm) |
| Configuration of Piezoelectric Frequency Converter | Configuration of Piezoelectric Frequency Converter | Configuration of Piezoelectric Frequency Converter | Configuration of Piezoelectric Frequency Converter | Configuration of Piezoelectric Frequency Converter |
| Piezoelectric Frequency Converter | CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramics | CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramics | CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramics | CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramics |
| Ultrasonic amplitude lever material | Titanium alloy material：TC4 | Titanium alloy material：TC4 | Titanium alloy material：TC4 | Titanium alloy material：TC4 |
| Horn Diameter | 3mm | 16mm | 18mm | 20mm |
| Processing Capacity | 0.1～50mL | 500～1800mL | 1000～2200mL | 1000～3000mL |
| Cable Line | 150cm | 150cm | 150cm | 150cm |
| Optional Accessories | Optional Accessories | Optional Accessories | Optional Accessories | Optional Accessories |
| Ultrasonic Horn(Optional) | Φ6（50～300mL）; Φ8（100～300mL） | Φ3(0.1～50mL) Φ6(50～500mL); Φ8(100~800mL) Φ10(500~1200mL); Φ13(500～1500mL) | Φ3（0.1～50mL）Φ6（50～500mL）; Φ8（100～800mL）Φ10（500-1200mL）; Φ13（500-1500mL）Φ16（500-1800mL） | Φ3（0.1～50mL）Φ6（50～500mL）; Φ8（100～800mL）Φ10（500-1200mL）; Φ13（500-1500mL）Φ16（500-1800mL）; Φ18（1000-2200mL） |
| Packing list | Packing list | Packing list | Packing list | Packing list |
| Ultrasonic probe | 1pc | 1pc | 1pc | 1pc |
| Lifting platform, anti-skid pad | 1pc | 1pc | 1pc | 1pc |
| The power cord | 1pc | 1pc | 1pc | 1pc |
| Temperature sensor | 1pc | 1pc | 1pc | 1pc |
| Transducer cable | 1pc | 1pc | 1pc | 1pc |
| Fuse | 3pc | 3pc | 3pc | 3pc |
| Operating user manual | 1set | 1set | 1set | 1set |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
