Brand: Infitek | Category: Scientific & Laboratory Equipment

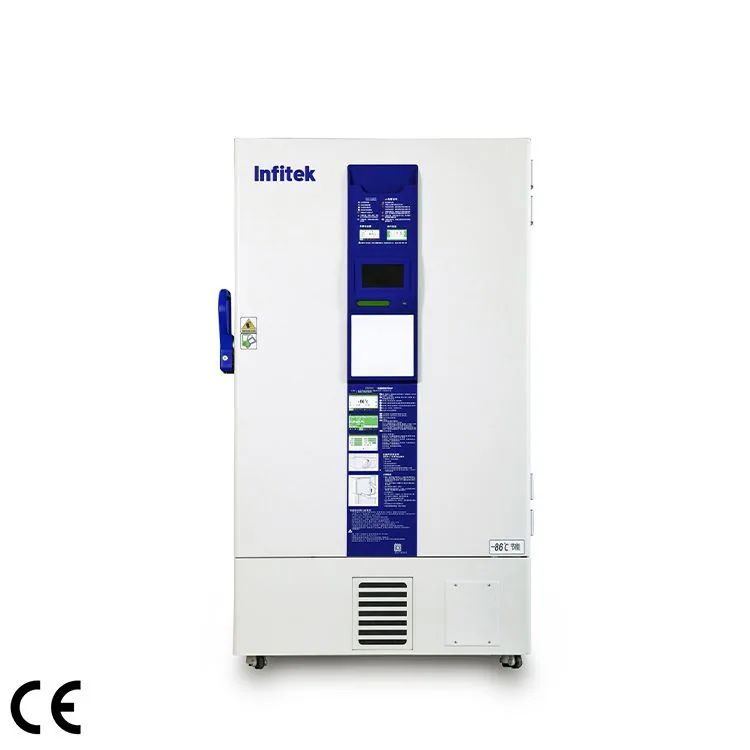

Infitek Ultra Low Temperature Freezer, -86 ℃, ULF86 Series is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: ULF86-340, ULF86-410, ULF86-590, ULF86-730, ULF86-840. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ULF86-340 | ULF86-410 | ULF86-590 | ULF86-730 | ULF86-840 |
|---|---|---|---|---|---|
| Capacity (L) | 338 | 408 | 588 | 728 | 838 |
| Dimension (W*D*H) / Internal (mm) | 488*607*1140 | 606*575*1180 | 606*738*1310 | 963*571*1350 | 894*718*1310 |
| Dimension (W*D*H) / External (mm) | 854*1072*1907 | 891*992*1945.5 | 891*1155*1994.5 | 1248*975*1994.5 | 1179*1135*1994.5 |
| Temperature / Range (℃) at RT.10~32℃ | -40~-86 | -40~-86 | -40~-86 | -40~-86 | -40~-86 |
| Temperature / Accuracy(℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 | PT100 |
| Temperature / Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor |
| Cooling system / Refrigerant | HC (CFC Free ) | HC (CFC Free ) | HC (CFC Free ) | HC (CFC Free ) | HC (CFC Free ) |
| Cooling system / Defrost | Manual | Manual | Manual | Manual | Manual |
| Cooling system / Compressor (Qty) | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 |
| Display | LCD display | LCD display | LCD display | LCD display | LCD display |
| Audible&Visible Alarm / High/Low temperature | Standard | Standard | Standard | Standard | Standard |
| Audible&Visible Alarm / High ambient temperature | Standard | Standard | Standard | Standard | Standard |
| Audible&Visible Alarm / Sensor error | Standard | Standard | Standard | Standard | Standard |
| Audible&Visible Alarm / Abnormal voltage | Standard | Standard | Standard | Standard | Standard |
| Audible&Visible Alarm / Low battery | Standard | Standard | Standard | Standard | Standard |
| Audible&Visible Alarm / Power failure backup system(alarm) | 72h | 72h | 72h | 72h | 72h |
| Audible&Visible Alarm / Door ajar | Standard | Standard | Standard | Standard | Standard |
| Material / Internal | Stainless steel, grade 304 | Stainless steel, grade 304 | Stainless steel, grade 304 | Stainless steel, grade 304 | Stainless steel, grade 304 |
| Material / External | Powder-Coated steel | Powder-Coated steel | Powder-Coated steel | Powder-Coated steel | Powder-Coated steel |
| Material / Inner Door | Stainless steel, grade 304 | Stainless steel, grade 304 | Stainless steel, grade 304 | Stainless steel, grade 304 | Stainless steel, grade 304 |
| Accessories / USB port | Standard | Standard | Standard | Standard | Standard |
| Accessories / Casters | Standard | Standard | Standard | Standard | Standard |
| Accessories / Chart recorder | Optional | Optional | Optional | Optional | Optional |
| Accessories / Temperature data logger | Optional | Optional | Optional | Optional | Optional |
| Accessories / Remote alarm port | Standard | Standard | Standard | Standard | Standard |
| Accessories / Test hole (Qty) / Diameter (mm) | 2/25 | 2/25 | 2/25 | 2/25 | 2/25 |
| Accessories / Back up system (LN₂) | Optional | Optional | Optional | Optional | Optional |
| Shelves / Drawers (Qty) | Shelves/3 | Shelves/3 | Shelves/3 | Shelves/3 | Shelves/3 |
| Optional Frozen Racks (Qty) / Racks | 12(4*4) | 8（5*4）+8（4*4） | 16(5*5) | 18(5*4)+6(6*4) | 24(5*5) |
| Optional Frozen Racks (Qty) / Boxes (2 Inches) | 192 | 288 | 400 | 504 | 600 |
| Optional Frozen Racks (Qty) / Samples (2ml) | 19200 | 28800 | 40000 | 50400 | 60000 |
| Sound Emission (dB) | 50 | 50 | 53 | 53 | 53 |
| Electricity / Voltage/Frequency | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Electricity / Consumption (W) | 870 | 845 | 815 | 935 | 890 |
| N.W./G.W. (Kg) | 296/306 | 292/317 | 335/363.5 | 380/400 | 397/430 |
| Shipping Dimension (W*D*H) (mm) | 960*1090*2090 | 970*1035*2120 | 975*1185*2200 | 1330*1015*2200 | 1270*1170*2200 |
Manufacturer catalogue checked 2026-09-28.
