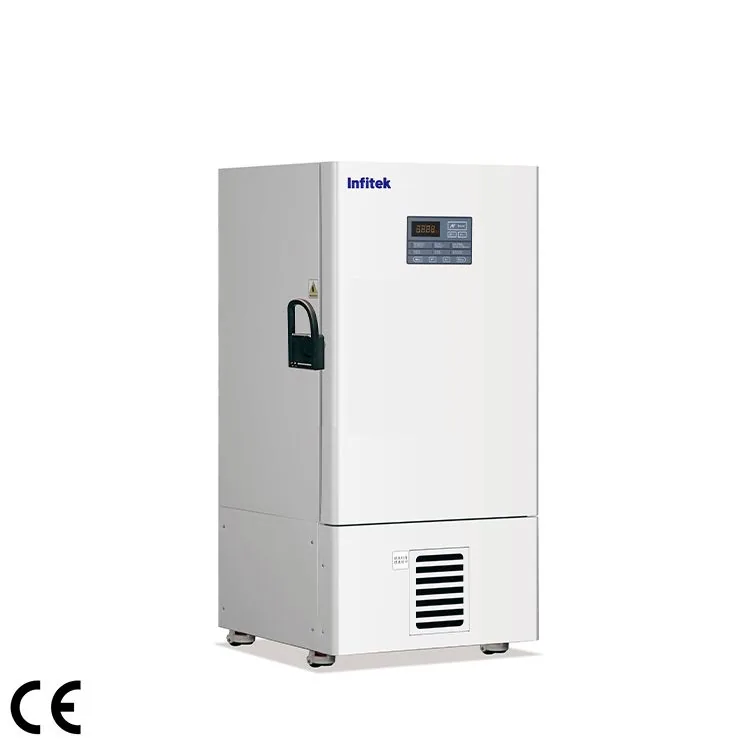

Infitek Ultra Low Temperature Freezer, -86℃, ULF86-E Series

Brand: Infitek | Category: Scientific & Laboratory Equipment

Infitek Ultra Low Temperature Freezer, -86℃, ULF86-E Series

Infitek Ultra Low Temperature Freezer, -86℃, ULF86-E Series is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: ULF86-60E, ULF86-190E, ULF86-340E, ULF86-410E, ULF86-590E, ULF86-730E. Compare the remaining models in the specification tables. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications
ModelULF86-60EULF86-190EULF86-340EULF86-410EULF86-590EULF86-730EULF86-840E
Capacity (L)58188340408588728838
Dimension (W*D*H) / Internal (mm)330*453*410465*465*830488*607*1140606*575*1180606*738*1310963*571*1350894*718*1310
Dimension (W*D*H) / External (mm)635*757*1212830*810*1607.5854*1006*1907872*1028*1945.5891×1155×1994.51248×975×1994.51179×1135×1994.5
Temperature / Range (℃) at RT.10~32℃-40~-86-40~-86-40~-86-40~-86-40~-86-40~-86-40~-86
Temperature / SensorPT100PT100PT100PT100PT100PT100PT100
Temperature / ControllerMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessorMicroprocessor
Cooling system / RefrigerantR4001R4001R4001R4001R4001R4001R4001
Cooling system / DefrostManualManualManualManualManualManualManual
Cooling system / Compressor (Qty)SECOP/1CUBIGEL/1SECOP/1SECOP/1SECOP/2SECOP/2SECOP/2
DisplayDigital displayDigital displayLCD displayLCD displayLCD displayLCD displayLCD display
Audible&Visible Alarm / High/Low temperatureStandardStandardStandardStandardStandardStandardStandard
Audible&Visible Alarm / High ambient temperatureStandardStandardStandardStandardStandardStandardStandard
Audible&Visible Alarm / Sensor errorStandardStandardStandardStandardStandardStandardStandard
Audible&Visible Alarm / Abnormal voltageStandardStandardStandardStandardStandardStandardStandard
Audible&Visible Alarm / Low batteryStandardStandardStandardStandardStandardStandardStandard
Audible&Visible Alarm / Power failure backup system(alarm)72h72h72h72h72h72h72h
Audible&Visible Alarm / Door ajarStandardStandardStandardStandardStandardStandardStandard
Material / InternalStainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304
Material / ExternalPowder-Coated steelPowder-Coated steelPowder-Coated steelPowder-Coated steelPowder-Coated steelPowder-Coated steelPowder-Coated steel
Material / Inner DoorStainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304Stainless steel, grade 304
Accessories / USB portStandardStandardStandardStandardStandardStandardStandard
Accessories / CastersStandardStandardStandardStandardStandardStandardStandard
Accessories / Chart recorder///////
Accessories / Temperature data loggerOptionalOptionalOptionalOptionalOptionalOptionalOptional
Accessories / Remote alarm portStandardStandardStandardStandardStandardStandardStandard
Accessories / Test hole (Qty) / Diameter (mm)2/252/252/252/252/252/252/25
Accessories / Back up system (LN₂)OptionalOptionalOptionalOptionalOptionalOptionalOptional
Shelves / Drawers (Qty)Shelf/1Shelves/2Shelves/3Shelves/3Shelves/3Shelves/3Shelves/3
Optional Frozen Racks (Qty) / Racks2(6*3)9(4*3)12(4*4)8（5*4）+8（4*4）16(5*5)18(5*4)+6(6*4)24(5*5)
Optional Frozen Racks (Qty) / Boxes (2 Inches)36108192288400504600
Optional Frozen Racks (Qty) / Samples (2ml)3600108001920028800400005040060000
Sound Emission (dB)50525253535355
Electricity / Voltage/FrequencyAC110/220V±10%, 50/60HzAC110/220V±10%, 50/60HzAC110/220V±10%, 50/60HzAC110/220V±10%, 50/60HzAC110/220V±10%, 50/60HzAC110/220V±10%, 50/60HzAC110/220V±10%, 50/60Hz
Electricity / Consumption (W)442660810890150014001700
N.W./G.W. (Kg)115/155207/220268/288268/293283/345.5316/392332/407
Package Dimension (W*D*H)(mm750*870*1420890*920*1820960*1090*20801070*980*21301190*970*22001330*1020*22001275*1165*2200

Manufacturer catalogue checked 2026-09-28.

View on manufacturer website

Get a Quote

Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
