Brand: Infitek | Category: Scientific & Laboratory Equipment

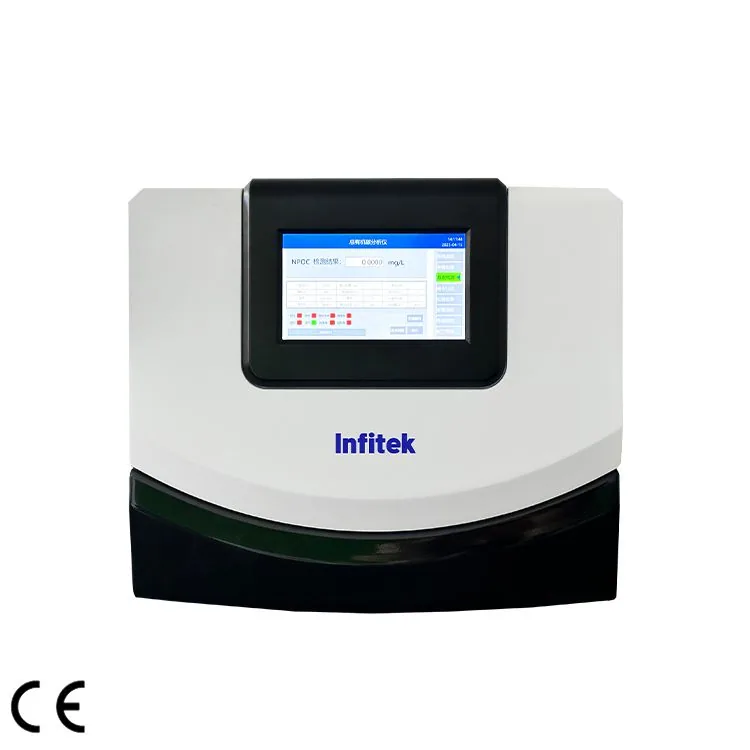

Infitek TOC Analyzer, TOC-Q800 is listed in VVON's ph conductivity & water analysis range for Bangladesh. Published models: TOC-Q800. Published details include Sample Injection Volume: 20-1000 μL. Match measured parameters, range, probe compatibility and sample conditions. For a quotation, send the water or sample type, parameters, range, probe and calibration requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TOC-Q800 |
|---|---|
| Analysis Method | High-temperature catalytic oxidation – NDIR detection principle |
| Measurement Parameters | TC, TIC, TOC, NPOC |
| TOC Detection Range | 0.050-35000 mg/L |
| Sample Injection Volume | 20-1000 μL |
| Carrier Gas | High-purity oxygen (99.999%) |
| Furnace Temperature | Max. 1300°C |
| Salt Tolerance | 100 g/L |
| Acid Reagent | Phosphoric acid solution |
| Analysis Time | 3-8 min |
| TOC Detection Resolution | 0.001 mg/L |
| Accuracy Error | ±5% |
| Repeatability Error | ≤3% |
| Zero Drift | ±2%/D |
| Span Drift | ±2%/D |
| Power Supply | 220±22V AC, 50±1Hz |
| Power | 800W |
| Ambient Temperature | 0-60℃±5℃/D |
| Relative Humidity | ≤90% |
| External Dimensions | 595*425*455 mm |
| Net Weight | 44 kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
