Infitek Sterilizing Oven, DOF-HAS-A Series

Brand: Infitek | Category: Scientific & Laboratory Equipment

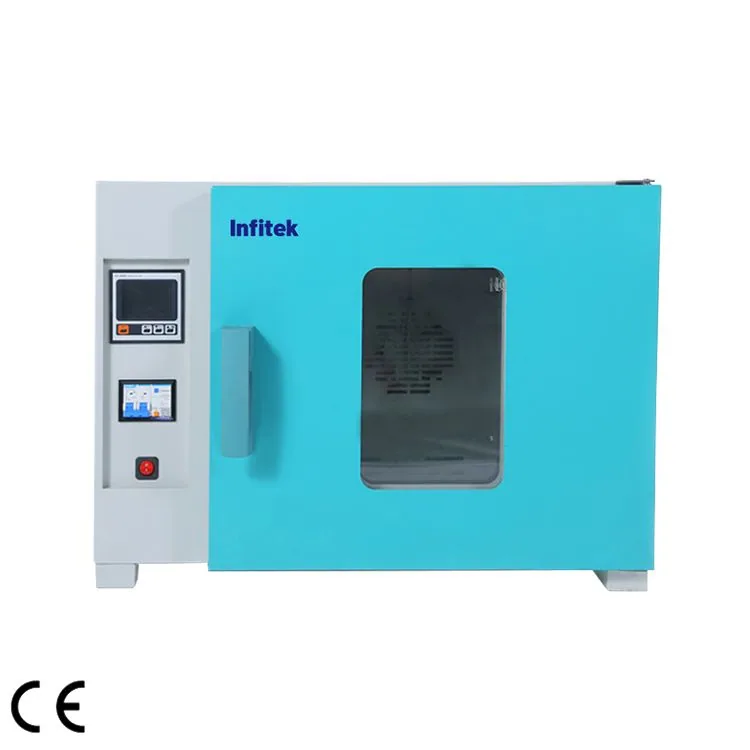

Infitek Sterilizing Oven, DOF-HAS-A Series

Infitek Sterilizing Oven, DOF-HAS-A Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: DOF-HAS20A, DOF-HAS50A, DOF-HAS70A, DOF-HAS100A, DOF-HAS200A. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications
ModelDOF-HAS20ADOF-HAS50ADOF-HAS70ADOF-HAS100ADOF-HAS200A
Capacity(L)345170138188
CirculationForced air convectionForced air convectionForced air convectionForced air convectionForced air convection
Dimension(W*D*H) / Internal (mm)340*320*320420*350*350400*360*500550*450*560600*550*570
/ External (mm)630*570*500830*710*700540*550*870845*700*730890*730*780
Temperature / Range (℃)RT+10-250RT+10-250RT+10-250RT+10-250RT+10-250
Temperature / RT+10-250RT+10-250RT+10-250RT+10-250RT+10-250
Temperature / Fluctuation (℃)±0.5±0.5±0.5±0.5±0.5
Temperature / Resolution (℃)0.10.10.10.10.1
Temperature / Uniformity (℃)±2.5%±2.5%±2.5%±2.5%±2.5%
Temperature / SensorPT100PT100PT100PT100PT100
ControllerPIDPIDPIDPIDPID
DisplayLCDLCDLCDLCDLCD
Timer(min)1-99991-99991-99991-99991-9999
Material / InternalStainless steelStainless steelStainless steelStainless steelStainless steel
Material / ExternalHigh-quality cold-rolled steel plate surface anti-static sprayingHigh-quality cold-rolled steel plate surface anti-static sprayingHigh-quality cold-rolled steel plate surface anti-static sprayingHigh-quality cold-rolled steel plate surface anti-static sprayingHigh-quality cold-rolled steel plate surface anti-static spraying
Shelves22222
Safety DeviceLeakage protector/Over- temperature alarmLeakage protector/Over- temperature alarmLeakage protector/Over- temperature alarmLeakage protector/Over- temperature alarmLeakage protector/Over- temperature alarm
Electricity / Voltage/Frequency(V/Hz)AC 220/110V,50/60HzAC 220/110V,50/60HzAC 220/110V,50/60HzAC 220/110V,50/60HzAC 220/110V,50/60Hz
Electricity / Consumption (W)500750105015002000
N.W./G.W. (kg)27/3042/4855/6170/8886/107
Shipping Dimension (W*D*H) (mm)770*680*580760*640*640650*640*1030810*900*960990*860*940
StandardShell:Laser operationShell:Laser operationShell:Laser operationShell:Laser operationShell:Laser operation
StandardInner tank: high quality brushed stainless steelInner tank: high quality brushed stainless steelInner tank: high quality brushed stainless steelInner tank: high quality brushed stainless steelInner tank: high quality brushed stainless steel
StandardFan: high quality fanFan: high quality fanFan: high quality fanFan: high quality fanFan: high quality fan
StandardHeating pipe: high quality stainless steel heating pipeHeating pipe: high quality stainless steel heating pipeHeating pipe: high quality stainless steel heating pipeHeating pipe: high quality stainless steel heating pipeHeating pipe: high quality stainless steel heating pipe
StandardInsulation: High-quality aluminum silicate silk cotton six-sided insulationInsulation: High-quality aluminum silicate silk cotton six-sided insulationInsulation: High-quality aluminum silicate silk cotton six-sided insulationInsulation: High-quality aluminum silicate silk cotton six-sided insulationInsulation: High-quality aluminum silicate silk cotton six-sided insulation
StandardElectrical appliances: Leakage protectorElectrical appliances: Leakage protectorElectrical appliances: Leakage protectorElectrical appliances: Leakage protectorElectrical appliances: Leakage protector
StandardTemperature control: with PID, timing, self-tuning, thyristor, LCD displayTemperature control: with PID, timing, self-tuning, thyristor, LCD displayTemperature control: with PID, timing, self-tuning, thyristor, LCD displayTemperature control: with PID, timing, self-tuning, thyristor, LCD displayTemperature control: with PID, timing, self-tuning, thyristor, LCD display
OptionalIntelligent touch screen with program setting and data storage functionsIntelligent touch screen with program setting and data storage functionsIntelligent touch screen with program setting and data storage functionsIntelligent touch screen with program setting and data storage functionsIntelligent touch screen with program setting and data storage functions
OptionalPrinter or RS 485 port (choose one), independent temperature limit controller, test holePrinter or RS 485 port (choose one), independent temperature limit controller, test holePrinter or RS 485 port (choose one), independent temperature limit controller, test holePrinter or RS 485 port (choose one), independent temperature limit controller, test holePrinter or RS 485 port (choose one), independent temperature limit controller, test hole

Manufacturer catalogue checked 2026-09-28.

View on manufacturer website

Get a Quote

Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
