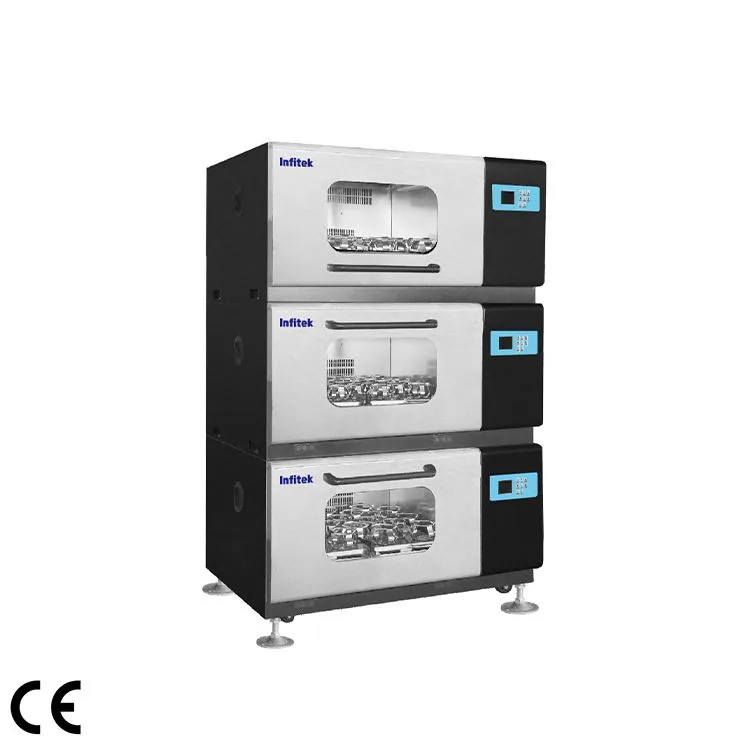

Infitek Stacked Thermostatic Oscillator, ICB-2S103, ICB-2S203
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Stacked Thermostatic Oscillator, ICB-2S103, ICB-2S203 is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-2S103, ICB-2S203. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-2S103 | ICB-2S203 | ICB-2S203 |
|---|---|---|---|
| Control mode | P.I.D microprocessor chip | P.I.D microprocessor chip | P.I.D microprocessor chip |
| Convection mode | Forced convection | Forced convection | Forced convection |
| Shake mode | Convolution | Convolution | Convolution |
| Display | LCD display | LCD display | LCD display |
| Drive mode | Multidimensional drive | Multidimensional drive | Multidimensional drive |
| System of USB data download and analysis | Yes | Yes | Yes |
| Control system | Multiple programmable mode(temp,speed,time) | Multiple programmable mode(temp,speed,time) | Multiple programmable mode(temp,speed,time) |
| Cyclotron frequency range(rpm/min) | 0；20-350(top floor 20-300)(To do static culture) | 0；20-350(top floor 20-300)(To do static culture) | 0；20-350(top floor 20-300)(To do static culture) |
| Cyclotron frequency sensitivity(rpm) | ±1 | ±1 | ±1 |
| Orbit Diameter(mm) | Φ26 | Φ26 | Φ26 |
| Max. capacity | 250ml×32 or 500ml×21 or 1L×13 or 2L×7(per unit) | 250ml×32 or 500ml×21 or 1L×13 or 2L×7(per unit) | 250ml×32 or 500ml×21 or 1L×13 or 2L×7(per unit) |
| Standard capacity | 500ml×20 | 500ml×20 | 500ml×20 |
| Size of platform(mm) | 610×460 | 610×460 | 610×460 |
| Timing range(h) | 0-9999(Any time,continuous duty) | 0-9999(Any time,continuous duty) | 0-9999(Any time,continuous duty) |
| Temperature range(℃） | Ambient +5°C~ 65°C （Refrigeration） | 4°C~ 65°C （ Refrigeration） | 4°C~ 65°C （ Refrigeration） |
| Temperature regulate sensitivity(℃） | ±0.1 | ±0.1 | ±0.1 |
| Temperature uniformity(℃) | ±0.6（37℃） | ±0.6（37℃） | ±0.6（37℃） |
| Temperature fluctuation(℃) | ≤0.1（37℃） | ≤0.1（37℃） | ≤0.1（37℃） |
| Number of platform | One (per unit) | One (per unit) | One (per unit) |
| External dimension（W*D*H)（mm） | 1120×790×620(per unit) | 1120×790×620(per unit) | 1120×790×620(per unit) |
| Capacity（L) | 180 | 180 | 180 |
| Power（W) | 1000 | 1200 | 1200 |
| Electricity | AC220±10%, 50Hz | AC220±10%, 50Hz | AC220±10%, 50Hz |
| Net weight(kg) | 190 | 190 | 190 |
| Gross weight(kg) | 220 | 220 | 230 |
Manufacturer catalogue checked 2026-09-28.
