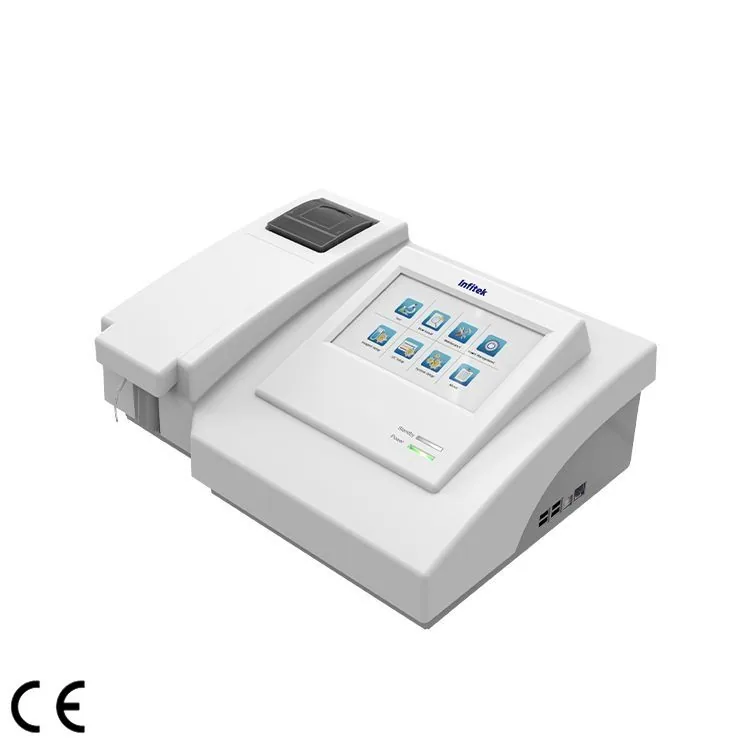

Infitek Semi-Auto Biochemistry Analyzer, BA-SA-100
Brand: Infitek | Category: Medical Equipment
Infitek Semi-Auto Biochemistry Analyzer, BA-SA-100 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BA-SA-100. Published details include Flow cell capacity & optical path: 32ul, 10mm.. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BA-SA-100 |
|---|---|
| Test method | 1 point end, 2 point end(Sample blank), Kinetics, Fixed-time |
| Optics | 7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional. |
| Lamp house | Long-life tungsten halogen lamp(6V/10W), auto-sleep function. |
| Display | 7.0″ TFT LCD with touch screen, 800*480 pixels. |
| Printer | Build-in thermal printer, 57mm printer paper. |
| Temperature | 25, 30, 37℃ and Room temperature. By means of Peltier elements. |
| Flow cell capacity & optical path | 32ul, 10mm. |
| Resolution | 0.0001 Abs. |
| Photometric range | 0.0000-4.0000 Abs. |
| CPU | ARM Cortex-A8, 720MHz |
| Memory | DDR2 SDRAM: 1G bit; |
| Flash | 256 MB; Over 300 programs, 200000 results can be stored. |
| Interface | 4 USB Hosts, 1 USB Slave, 1 Ethernet port.; USB port(host) for keyboard, mouse, printer, U disk, bar code reader etc.; USB port(slave) for PC connection(support PC software control function). |
| Operational environment | Temperature: 10°C~30°C, Humidity: 30%~80%. |
| Power requirement | Wide power supply AC 100-240V, 50/60 Hz. |
| Dimension | 400*300*160mm(L*W*H). |
| Language | English、Portuguese、Spanish、Chinese |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
