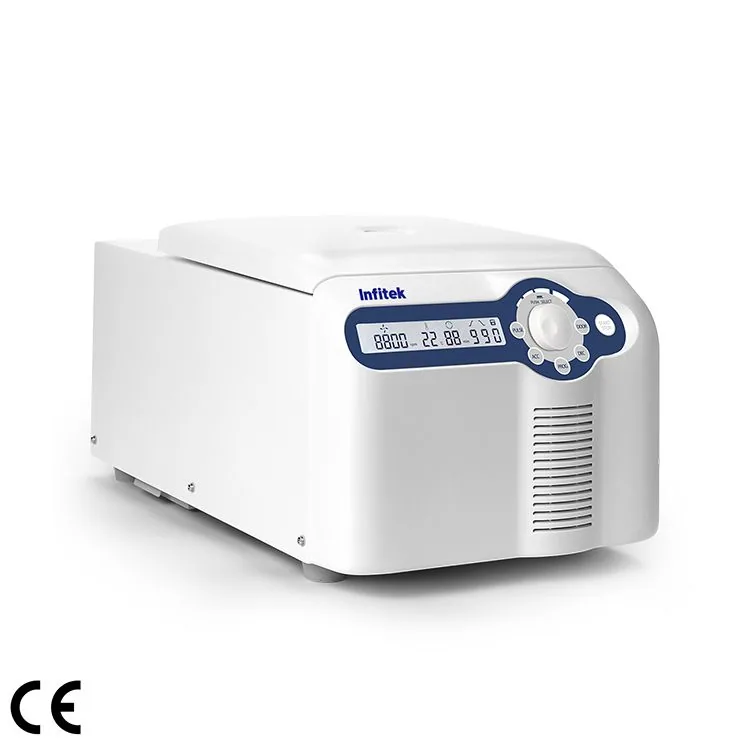

Infitek Refrigerated Microcentrifuge, High Speed, CFGR-15D
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Refrigerated Microcentrifuge, High Speed, CFGR-15D is listed in VVON's laboratory centrifuges range for Bangladesh. Published models: CFG-Mini15D, CFG-15D, CFGR-15D. Published details include Max. Speed: 15,000rpm (200-15,000rpm) in 100rpm increments.; Max. RCF: 21,380×g, step: 10×g. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | CFGR-15D |
|---|---|
| Max. Speed | 15,000rpm (200-15,000rpm) in 100rpm increments. |
| Max. RCF | 21,380×g, step: 10×g |
| Capacity | 1.5/2mL×24, 0.5mL×36, PCR8×4, 5mL×12, 5mL×18. |
| Temperature Setting | -20℃- 40℃ |
| Run Time | 30s-99 min; HOLD (continuous running) |
| Acceleration and deceleration time | 25s↑25s↓ |
| Motor Type | DC brushless motor |
| Safety Performance | Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system. |
| Power Requirements | Single phase, 200-240V, 50Hz, 500W |
| Noise | ≤56dB |
| Dimensions(mm) | 332(width) × 553(depth) × 283(height) |
| Weight | 30 kg |
| Package Dimension (W*D*H) | 920*530*530mm |
| G.W. | 47kg |
| Other functions | Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Acceleration/deceleration in 9 steps, program storage capacity. |
| CAT. NO. 19400069 for CFG-15D & CFGR-15D Max. speed: 15000rpm Max. RCF: 21380×g Rotor capacity: 2mL/1.5mL×24/0.2mL×24/0.5mL×24 Rotor material: Aluminum alloy Bio-safe (Bio sealing): Yes Available rotor adapters: CAT. NO. 19500001, CAT. NO. 19500002 |
| CAT. NO. 19400070 for CFG-15D & CFGR-15D Max. speed: 15000rpm Max. RCF: 21380×g Rotor capacity: 5mL×12(Cone bottom) Rotor material: Aluminum alloy Bio-safe (Bio sealing): Yes |
| CAT. NO. 19400071 for CFG-15D & CFGR-15D Max. speed: 15000rpm Max. RCF: 21380×g Rotor capacity: 0.5mL×36,0.2mL×36 Rotor material: Aluminum alloy Bio-safe (Bio sealing): Yes Available rotor adapters: CAT. NO. 19500003 |
| CAT. NO. 19400072 for CFG-15D & CFGR-15D Max. speed: 15000rpm Max. RCF: 21380×g Rotor capacity:0.2mL/PCR8×4 Rotor material: Aluminum alloy Bio-safe (Bio sealing): Yes |
| CAT. NO. 19400073 for CFG-15D & CFGR-15D Max. speed :15000rpm Max. RCF:21380×g Rotor capacity:5mL×18 (Round bottom) Rotor material: Aluminum alloy Bio-safe (Bio sealing): Yes |
| CAT. NO. 19500001 0.2mL rotor adapter 24pcs/pk |
| CAT. NO. 19500002 0.5mL rotor adapter 24pcs/pk |
| CAT. NO. 19500003 0.2mL rotor adapter 36pcs/pk |
| Model | Rotor model | Capacity | Hole diameter(mm) | Hole depth (mm) | Max. tube length (mm) |
|---|---|---|---|---|---|
| CFG-Mini15D | Cat. No. 19400010 | 2×12 | 11.2 | 39 | 47 |
| CFG-15D, CFGR-15D | CAT. NO. 19400069 | 2×24 | 11.2 | 40.5 | 54.2 |
| CFG-15D, CFGR-15D | CAT. NO. 19400070 | 0.5×36 | 8.2 | 29.3 | 36 |
| CFG-15D, CFGR-15D | CAT. NO. 19400071 | 0.2×32 | 6.5 | 20.4 | 36 |
| CFG-15D, CFGR-15D | CAT. NO. 19400072 | 5×18 | 13.7 | 39 | 56.5 |
| CFG-15D, CFGR-15D | CAT. NO. 19400073 | 5×12 | 17.5 | 44 | 56.5 |
Manufacturer catalogue checked 2026-09-28.
