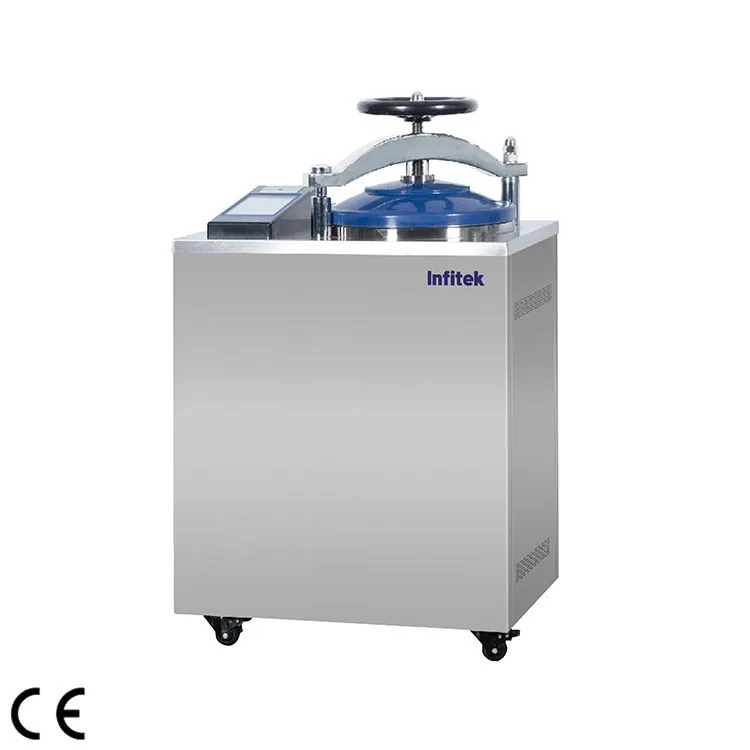

Infitek Pulse Vacuum Autoclave, Vertical Type, STV-APV Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Pulse Vacuum Autoclave, Vertical Type, STV-APV Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STV-APV35, STV-APV50, STV-APV75, STV-APV100. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | STV-APV35 | STV-APV50 | STV-APV75 | STV-APV100 |
|---|---|---|---|---|
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220/110V,50/60Hz | AC 220/110V,50/60Hz | AC 220/110V,50/60Hz | AC 220/110V,50/60Hz |
| Design pressure | 0.25MPa | 0.25MPa | 0.25MPa | 0.25MPa |
| Design temperature | 139℃ | 139℃ | 139℃ | 139℃ |
| Rated working pressure | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa |
| Rated working temperature | 134℃ | 134℃ | 134℃ | 134℃ |
| Sterilization temperature | 116℃~134℃ | 116℃~134℃ | 116℃~134℃ | 116℃~134℃ |
| Sterilization time setting range | 4~120 min | 4~120 min | 4~120 min | 4~120 min |
| Drying time setting range | 0~240min | 0~240min | 0~240min | 0~240min |
| Chamber volume(mm) | Ø300*545 | Ø400*515 | Ø400*665 | Ø450*725 |
| Bucket dimension(mm) | Ø275*395 | Ø375*235*2 | Ø375*265*2 | Ø425*275*2 |
| Basket dimension（optional）(mm) | Ø270*380 | Ø370*220*2 | Ø370*250*2 | Ø420*265*2 |
| Outer dimension(mm) | 610*430*1050 | 761*540*1180 | 761*540*1180 | 790*570*1265 |
| Packing dimension | 670*520*1180 | 840*610*1310 | 840*610*1310 | 870*650*1380 |
| (L* W* H )mm | 670*520*1180 | 840*610*1310 | 840*610*1310 | 870*650*1380 |
| G.W./N.W. | 86/80kg | 143/114kg | 150/121kg | 180/146kg |
Manufacturer catalogue checked 2026-09-28.
