Brand: Infitek | Category: Scientific & Laboratory Equipment

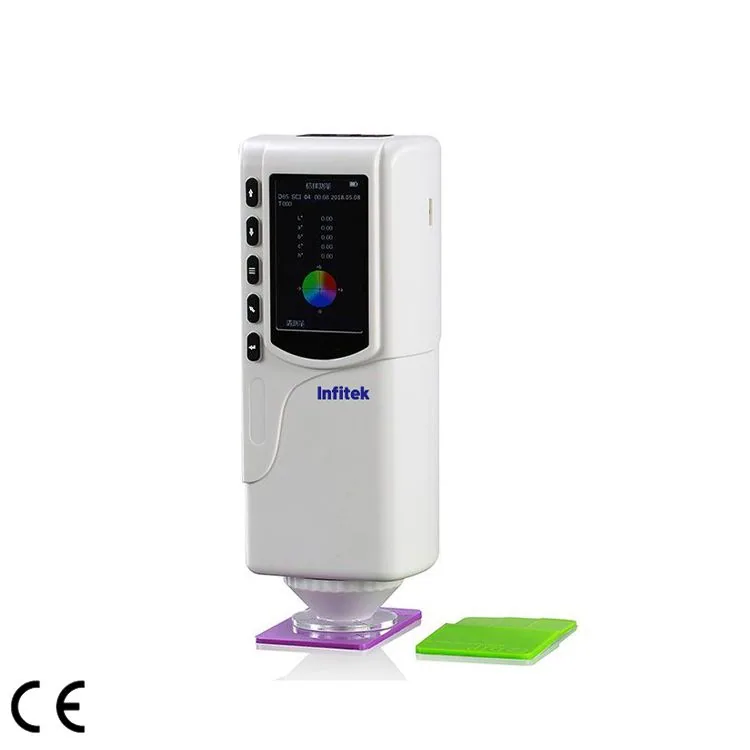

Infitek Portable Photoelectric Colorimeter, SP-CLR10QC is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR10QC. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR10QC | SP-CLR10QC |
|---|---|---|
| Size | 205 x67x80mm | 205 x67x80mm |
| Weight | approx. 400g (battery included) | approx. 400g (battery included) |
| Standards compliant | CIE No.15, GB/T 3978 | CIE No.15, GB/T 3978 |
| Battery | Rechargeable lithium ion battery 3.7V@3200 mAh | Rechargeable lithium ion battery 3.7V@3200 mAh |
| Inductor | silicon photodiode | silicon photodiode |
| Lighting source | life span of 5 years is more than 1.6 million measurements | life span of 5 years is more than 1.6 million measurements |
| Measuring caliber | Φ4mm | Φ4mm |
| Display screen | TFT true color 2.8in @(16 | TFT true color 2.8in @(16 |
| Color space | CIE lab | CIE lab |
| Interface | USB power supply only | USB power supply only |
| Observer Angle | CIE 10° standard observer | CIE 10° standard observer |
| Storage data | 100 standard samples, 10000 samples | 100 standard samples, 10000 samples |
| Operating temperature range | 0-40*C(32-104 “F) | 0-40*C(32-104 “F) |
| Display | chromaticity value, chromaticity value/graph, pass/fail results, color bias | chromaticity value, chromaticity value/graph, pass/fail results, color bias |
| Storage Temperature Range | -20~50°C(-4~122 F) | -20~50°C(-4~122 F) |
| Measurement time | 1.5 seconds | 1.5 seconds |
| PC software | no software | no software |
| Repeatability | OE* AB0.03 (average of 30 times) | OE* AB0.03 (average of 30 times) |
| Standard accessories | power adapter, manual, wristband, 4 platform measuring caliber | power adapter, manual, wristband, 4 platform measuring caliber |
| Difference between stations | AE* AB0.4 (average value of BCRA series 12 color plates) | AE* AB0.4 (average value of BCRA series 12 color plates) |
| Optional accessories | micro printer, powder test box | micro printer, powder test box |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
