Brand: Infitek | Category: Scientific & Laboratory Equipment

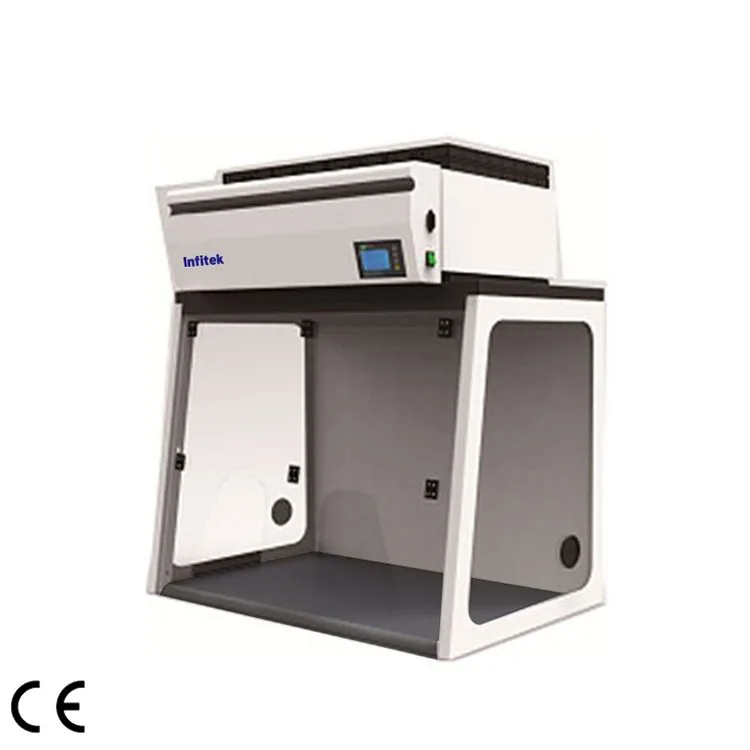

Infitek PCR Cabinet, LCB-VII Series is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: LCB-V800II, LCB-V1000II, LCB-V1300II, LCB-V1600II, LCB-V1800II. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Product model | LCB-V800II | LCB-V1000II | LCB-V1300II | LCB-V1600II | LCB-V1800II |
|---|---|---|---|---|---|
| Internal Dimensions(W*D*H)(mm) | 786*560*760 | 986*560*760 | 1286*690*760 | 1586*690*760 | 1786*690*760 |
| External Dimensions(W*D*H)(mm) | 800*620*890~1350 | 1000*620*890~1350 | 1300*790*920~1502 | 1600*790*930~1502 | 1800*790*940~1502 |
| Filter Number | 2 | 2 | 4 | 6 | 8 |
| Air volume(m³/h) | 240 | 240 | 480 | 720 | 960 |
| Surface Wind Speed (m/s) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Noise(dBA) | ≤50 | ≤50 | ≤54 | ≤57 | ≤57 |
| Standard Accessories | Fluorescent lamp*1 | Fluorescent lamp*1 | Fluorescent lamp*2 | Fluorescent lamp*3 | Fluorescent lamp*4 |
| Standard Accessories | UV lamp*1 | UV lamp*1 | UV lamp*2 | UV lamp*2 | UV lamp*3 |
| Standard Accessories | Filter*2 | Filter*2 | Filter*4 | Filter*6 | Filter*8 |
| Standard Accessories | Epoxy resin countertop*1 | Epoxy resin countertop*1 | Epoxy resin countertop*1 | Epoxy resin countertop*1 | Epoxy resin countertop*1 |
| Optional Accessories | Painted explosion-proof tempered glass countertop;Base Cabinet; Fluorescent lamp; Filter(HF4TY,HF4AM,HF4FM,HF4HP,HF4YJ) | Painted explosion-proof tempered glass countertop;Base Cabinet; Fluorescent lamp; Filter(HF4TY,HF4AM,HF4FM,HF4HP,HF4YJ) | Painted explosion-proof tempered glass countertop;Base Cabinet; Fluorescent lamp; Filter(HF4TY,HF4AM,HF4FM,HF4HP,HF4YJ) | Painted explosion-proof tempered glass countertop;Base Cabinet; Fluorescent lamp; Filter(HF4TY,HF4AM,HF4FM,HF4HP,HF4YJ) | Painted explosion-proof tempered glass countertop;Base Cabinet; Fluorescent lamp; Filter(HF4TY,HF4AM,HF4FM,HF4HP,HF4YJ) |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
