Brand: Infitek | Category: Scientific & Laboratory Equipment

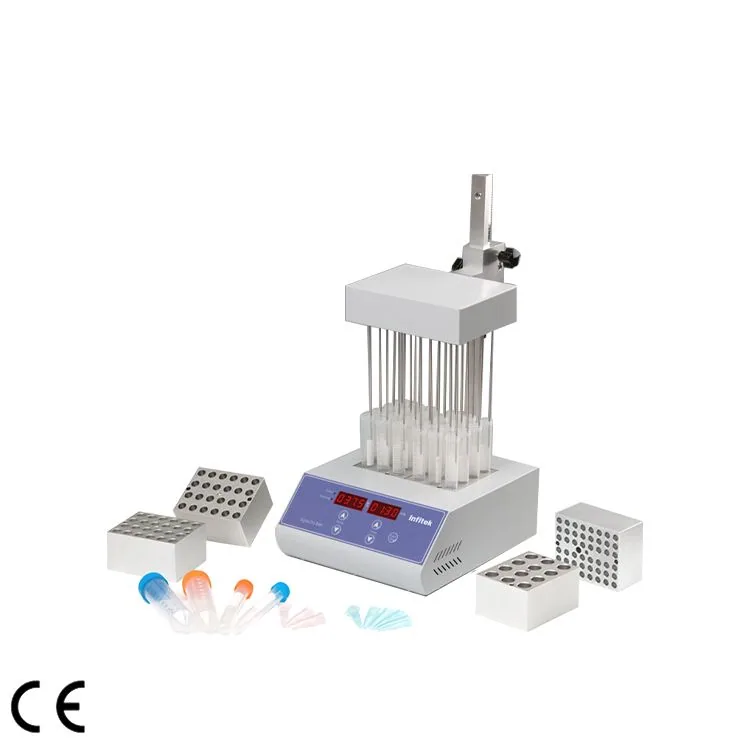

Infitek Nitrogen Evaporator, NEC160-2 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: MD03, MD04, MD05, MD06, MD07, MD08. Compare the remaining models in the specification tables. Published details include Temp range: RT.+5°C -160°C. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Project | Parameters |
|---|---|
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time Range | 1-99h59min/∞ |
| Heating time | ≤15min(from 25℃ to 160℃） |
| Needle length | 150mm |
| Max gas usage | 15L/min |
| Max gas pressure | 0.02Mpa(Gas pin≤16pcs) |
| Max gas pressure | 0.05Mpa(Gas pin＞1pcs) |
| Block qty | 2 |
| Max power | 500W |
| Voltage | AC220V or AC110V /50~60Hz |
| Size | 260 x 220 x 450mm |
| Weight | 7.5kg |
| Model | Tube diameter | Tube quantity |
|---|---|---|
| MD03 | 10mm | 24 |
| MD04 | 12mm | 24 |
| MD05 | 13mm | 24 |
| MD06 | 15mm | 16 |
| MD07 | 16mm | 16 |
| MD08 | 19mm | 12 |
| MD09 | 20mm | 12 |
| MD10 | 26mm | 8 |
| MD11 | 28mm | 4 |
| MD12 | 40mm | 3 |
| MD15 | 1.5ml centrifuge tube | 24 |
| MD16 | 2.0ml centrifuge tube | 24 |
Manufacturer catalogue checked 2026-09-28.
