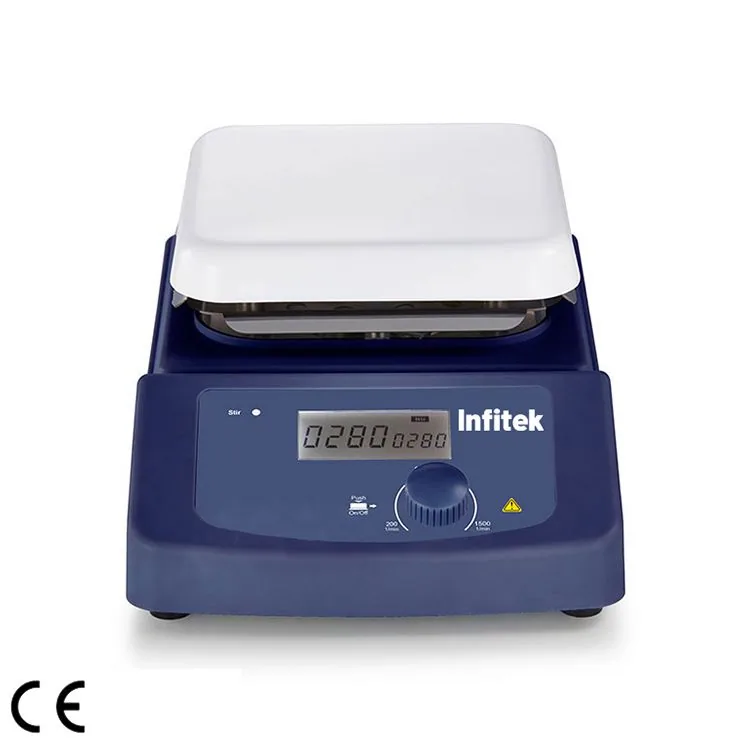

Infitek Magnetic Stirrer, MGS Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Magnetic Stirrer, MGS Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | MGS-1C | MGS-7S | MGS-6P |
|---|---|---|---|
| Work plate dimension [W×H] | φ 135mm (5 inch) | 184×184mm (7 inch) | 140 ×140mm |
| Work plate material | Stainless steel cover with ceramic | Glass ceramic | Aluminum cover with ceramic |
| Motor type | Brushless DC motor | Shaded pole motor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 |
| Max. stirring quantity [H_(2)O] | 20L | 10L | 5L |
| Max. magnetic bar [length] | 80mm | 80mm | 40mm |
| Speed range | 0-1500rpm | 0-1500rpm | 200-1500rpm |
| Speed display | Scale | Scale | LCD |
| Protection class | IP21 | IP21 | IP21 |
| Motor input power | 18W | 15W | 2.4W |
| Motor output power | 10W | 1.5W | 1.8W |
| Power | 30W | 30W | 10W |
| Voltage | 100-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-240V, 50/60Hz |
| Dimension [W×D×H] | 160×280×85mm | 215×360×112mm | 320×180×108mm |
| Package Dimension[W×D×H] | 270×500×280mm | 460*380*170mm | / |
| N.W. | 2.8kg | 3.8kg | 2.2kg |
| G.W. | 3.6kg | 7.6kg | / |
| Permissible ambient temperature and humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
Manufacturer catalogue checked 2026-09-28.
