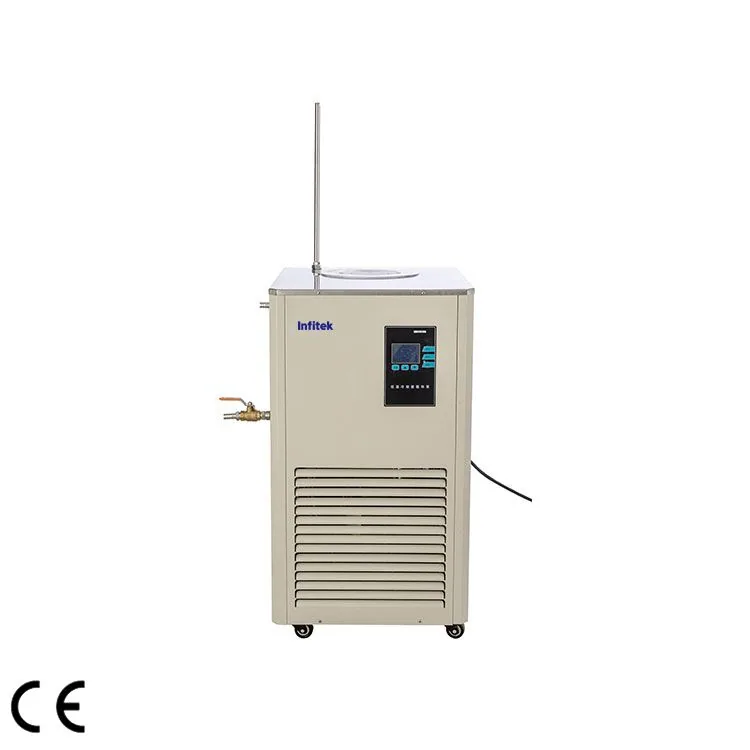

Infitek Low Temperature Circulator, RECL30-5
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Low Temperature Circulator, RECL30-5 is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: RECL30-5. Published details include Temperature Range: -30℃ ~RT.; Water Tank Dimension and Volume: φ220*180mm，6.8L. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RECL30-5 |
|---|---|
| Temperature Range | -30℃ ~RT. |
| Ambient Temperature | 5 ~35℃ |
| Ambient Humidity | ≤70％ |
| Electricity | Single phase AC220/110V,50/60Hz |
| Total Power | 887W |
| Safety Protection | Delay, over-current, overheat |
| Display | LCD display, key operation |
| Temperature Control Accuracy | ±0.1℃ |
| Sensor | PT100 |
| Refrigerant | R22 |
| Condensation Coil | φ8 copper tube plated by nickel |
| Equipment Material | Cold plate spray, anti-corrosion |
| Water Tank Dimension and Volume | φ220*180mm，6.8L |
| Available Dimension in Water Tank | φ185mm |
| Cover Opening | φ200mm |
| Outer Circulation Interface | Pagoda joint with Φ12mm outer diameter (facing the left side of the equipment） |
| Dimension | 423*485*(760+ pole 400)mm |
| N.W./G.W. | 46kg/60kg |
| Shipping Dimension | 610*450*900mm |
| / Quantity | 1 |
| / Power | 735W |
| / Cooling Capacity | 2324W |
| Circulation Pump / Power | 100W |
| Circulation Pump / Lift | 4-6m |
| Circulation Pump / Flow | 20-40L/min |
| Circulation Pump / Pressure | ≤0.4MPa |
| Air Cooling Condenser / Power | 52W |
| Air Cooling Condenser / Heating Exchange Area | 4.2m^(2) |
| Air Cooling Condenser / Air Volume | 760m³/h |
Manufacturer catalogue checked 2026-09-28.
