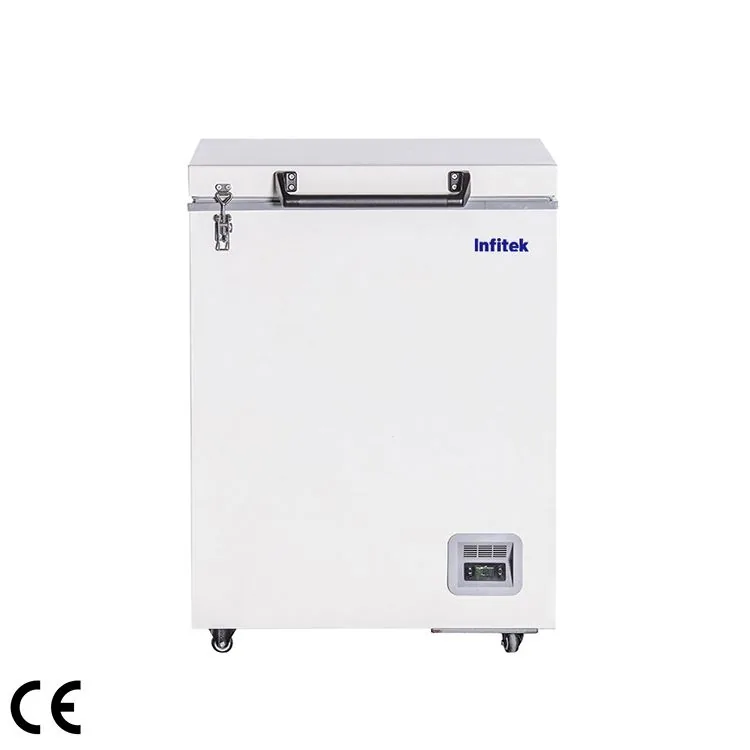

Infitek Laboratory Freezer, -40℃, LF40-H Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Laboratory Freezer, -40℃, LF40-H Series is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: LF40-H110, LF40-H310, LF40-H490. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | LF40-H110 | LF40-H310 | LF40-H490 |
|---|---|---|---|
| Capacity (L) | 105 | 305 | 485 |
| Dimension (W*D*H) / Internal (mm) | 480*380*665 | 1000*520*665 | 1455*525*665 |
| Dimension (W*D*H) / External (mm) | 694*686*942 | 1210X833X941 | 1667*863*949 |
| Temperature / Range (℃) at RT.10~32℃ | -20~-40 | -20~-40 | -20~-40 |
| Sensor | NTC | NTC | NTC |
| Controller | Microprocessor | Microprocessor | Microprocessor |
| Cooling Stystem / Refrigerant | R290 (CFC Free ) | R290 (CFC Free ) | R290 (CFC Free ) |
| Defrost | Manual | Manual | Manual |
| Compressor (Qty) | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/1 |
| Display | Digital display | Digital display | Digital display |
| Audible&Visible Alarm / High/Low temperature | Standard | Standard | Standard |
| Audible&Visible Alarm / High ambient temperature | / | / | / |
| Audible&Visible Alarm / Sensor error | Standard | Standard | Standard |
| Audible&Visible Alarm / Low battery | / | / | / |
| Audible&Visible Alarm / Power failure backup system(alarm) | 8h | 8h | 8h |
| Material / Internal | Stainless steel, grade 304 | Powder-Coated steel | Stainless steel, grade 304 |
| Material / External | Powder-Coated steel | Powder-Coated steel | Powder-Coated steel |
| Accessories / USB port | / | / | / |
| Accessories / Casters | / | / | / |
| Accessories / Remote alarm port | / | / | / |
| Accessories / Test hole (Qty / Diameter (mm) | 1/25 | 1/25 | 1/25 |
| Shelves / Drawers (Qty) | / | / | / |
| Sound Emission (dB) | 50 | 50 | 55 |
| Electricity / Voltage/Frequency | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Electricity / Consumption (W) | 175 | 162 | 300 |
| N.W./G.W. (Kg) | 62/70 | 80/85 | 124/138 |
| Package Dimension (W*D*H) (mm) | 770*705*1090 | 1300*870*1100 | 1760*880*1070 |
Manufacturer catalogue checked 2026-09-28.
