Brand: Infitek | Category: Scientific & Laboratory Equipment

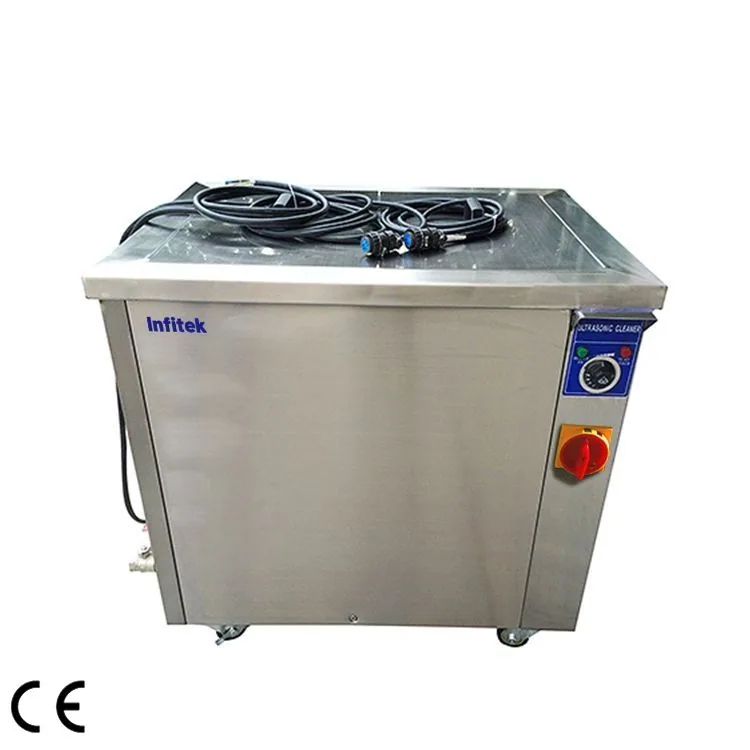

Infitek Industrial Ultrasonic Cleaner, USC2840-I Series is listed in VVON's laboratory washers & ultrasonic cleaners range for Bangladesh. Published models: USC2840-23I, USC2840-38I, USC2840-56I, USC2840-88I, USC2840-101I, USC2840-126I. Compare the remaining models in the specification tables. Match vessel size, load capacity, cleaning process and drying requirements. For a quotation, send the items to clean, load size, cleaning method and water connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | USC2840-23I | USC2840-38I | USC2840-56I | USC2840-88I | USC2840-101I | USC2840-126I | USC2840-150I | USC2840-170I | USC2840-190I | USC2840-210I | USC2840-230I | USC2840-250I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultrasonic Power(W)-Max | 300 | 600 | 900 | 1200 | 1500 | 1800 | 2100 | 2400 | 2700 | 3000 | 3300 | 3600 |
| Heating Power(W)-Max | 300 | 600 | 900 | 1200 | 1500 | 1800 | 2100 | 2400 | 2700 | 3000 | 3300 | 3600 |
| Capacity (L)-Max | 23 | 38 | 56 | 88 | 101 | 126 | 150 | 170 | 190 | 210 | 230 | 250 |
| Tank Size(L*W*H)-mm | 305*250*305 | 355*305*355 | 406*305*460 | 500*355*500 | 500*406*500 | 500*460*550 | Custom-made | Custom-made | Custom-made | Custom-made | Custom-made | Custom-made |
| External Size(L*W*H)-mm | 485*430*705 | 535*485*755 | 586*485*680 | 680*535*720 | 680*586*720 | 680*640*770 | Custom-made | Custom-made | Custom-made | Custom-made | Custom-made | Custom-made |
| Transducer qty(PCS) | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 |
| Timer setting | 1-30 mins | 1-30 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins | 1-60 mins |
| Separated Ultrasonic Generator | No (All-in- one) | No (All-in- one) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Ultrasonic Generator power supply | / | / | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP |
| Heating system power supply | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 220-240V, 1, 20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP | AC 380V, 3+N,20AMP |
| Ultrasonic Freq(KHz) | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 | 28 or 40 |
| Temperature setting(℃)-Max | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ | 110℃ |
| Drain valve | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Manufacturer catalogue checked 2026-09-28.
