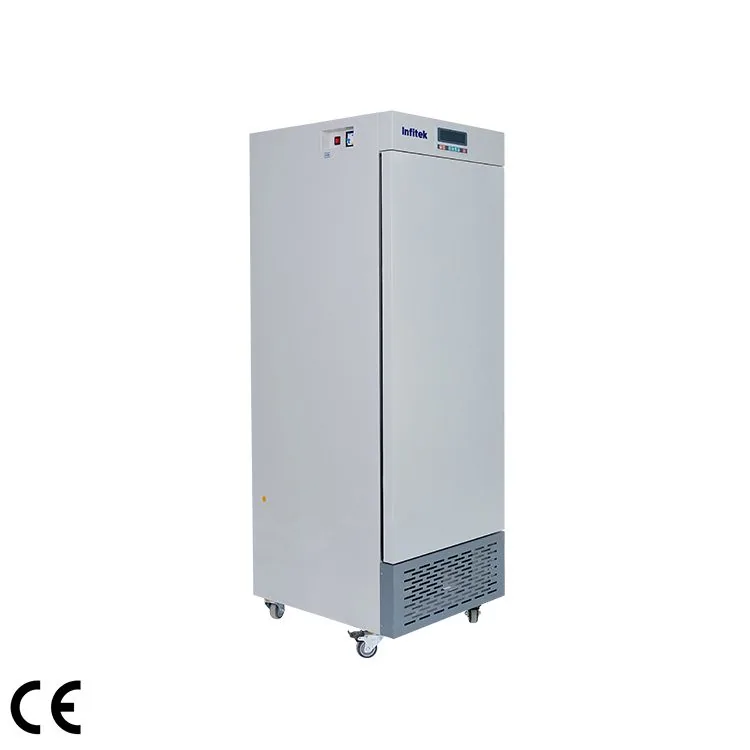

Infitek Illumination Chamber, ICB-L-B Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Illumination Chamber, ICB-L-B Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-L250B, ICB-L350B, ICB-L450B. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-L250B | ICB-L350B | ICB-L450B |
|---|---|---|---|
| Capacity(L) | 250 | 350 | 450 |
| Circulation Mode | Forced convection | Forced convection | Forced convection |
| Dimension(W*D*H) / Internal (mm) | 560*420*1050 | 560*530*1200 | 700*520*1210 |
| Dimension(W*D*H) / External (mm) | 660*660*1700 | 670*730*1880 | 810*790*1890 |
| Temperature / Range (℃) | With lighting: 10~50; Without lighting: 4~50 | With lighting: 10~50; Without lighting: 4~50 | With lighting: 10~50; Without lighting: 4~50 |
| Temperature / Fluctuation (℃) | ±1 | ±1 | ±1 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 |
| Temperature / Uniformity (℃) | ±1 | ±2 | ±2 |
| Temperature / Sensor | PT100 | PT100 | PT100 |
| Illumination(Lx) | 0~12000 | 0~15000 | 0~20000 |
| Illumination Control | 6-level relative illuminance control | 6-level relative illuminance control | 6-level relative illuminance control |
| Controller | PID | PID | PID |
| Display | Large high efinition LCD | Large high efinition LCD | Large high efinition LCD |
| Timer | 1~9999min (Optional 30*segments*100cycles) | 1~9999min (Optional 30*segments*100cycles) | 1~9999min (Optional 30*segments*100cycles) |
| Material / Internal | Stainless steel | Stainless steel | Stainless steel |
| Material / External | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior |
| Shelves | 3 | 3 | 3 |
| Test Hole (Optional) | Φ 25,50,80 mm | Φ 25,50,80 mm | Φ 25,50,80 mm |
| Internal Socket | Optional | Optional | Optional |
| Refrigerant | R134a (CFC free) | R134a (CFC free) | R134a (CFC free) |
| Defrosting Mode | Automatic | Automatic | Automatic |
| Safety Device | Visible& Audible over temperaure;leakage protector | Visible& Audible over temperaure;leakage protector | Visible& Audible over temperaure;leakage protector |
| Electricity / Voltage/Frequency | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Electricity / Consumption (W) | 1500 | 2150 | 2250 |
| N.W./G.W. (kg) | 103/ 123 | 128 / 149 | 153 / 175 |
| Package Dimension (W*D*H)(mm) | 800*750*1940 | 910*780*2030 | 880*850*2100 |
| Optional | Test hole, internal socket, Digital independent temperature limiter; 、Programable temperature controller (Optional USB,RS485/232 and built-in printer)、Spare shelf | Test hole, internal socket, Digital independent temperature limiter; 、Programable temperature controller (Optional USB,RS485/232 and built-in printer)、Spare shelf | Test hole, internal socket, Digital independent temperature limiter; 、Programable temperature controller (Optional USB,RS485/232 and built-in printer)、Spare shelf |
Manufacturer catalogue checked 2026-09-28.
