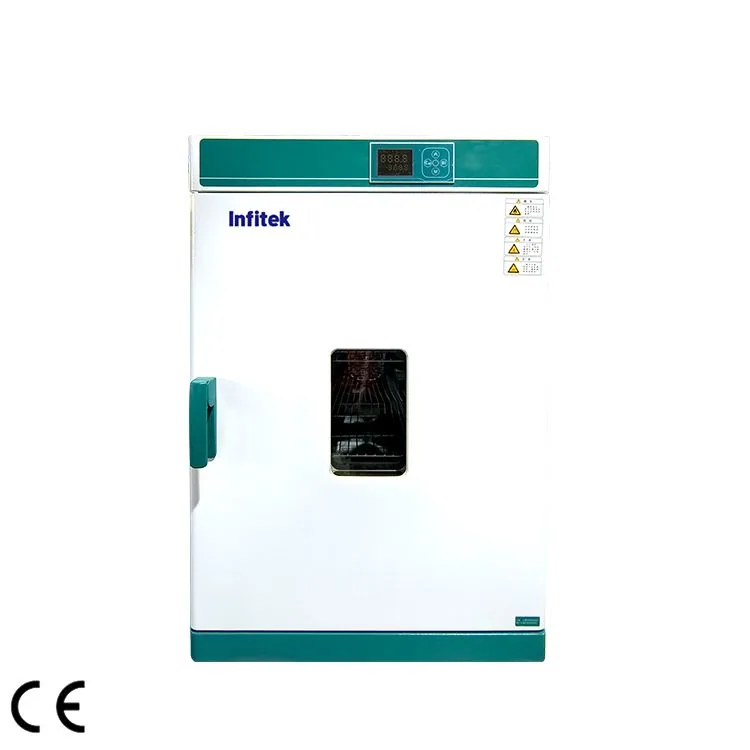

Infitek Hot Air Sterilizing Oven, DOF-HAS E Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Hot Air Sterilizing Oven, DOF-HAS E Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: DOF-HAS30E, DOF-HAS45E, DOF-HAS65E, DOF-HAS85E, DOF-HAS125E, DOF-HAS230E. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOF-HAS30E | DOF-HAS45E | DOF-HAS65E | DOF-HAS85E | DOF-HAS125E | DOF-HAS230E |
|---|---|---|---|---|---|---|
| Cycle Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Function / Temp. Range | RT+10-300℃ | RT+10-300℃ | RT+10-300℃ | RT+10-300℃ | RT+10-300℃ | RT+10-300℃ |
| Function / Temp. Resolution Ratio | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Function / Temp. Fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Function / Temp. Uniformity | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% |
| Structure / Inner Chamber | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel |
| Structure / Outside Material | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior |
| Structure / Insulation Layer | High quality rock wool board (with CE) | High quality rock wool board (with CE) | High quality rock wool board (with CE) | High quality rock wool board (with CE) | High quality rock wool board (with CE) | High quality rock wool board (with CE) |
| Structure / Heater | 304 stainless steel heater | 304 stainless steel heater | 304 stainless steel heater | 304 stainless steel heater | 304 stainless steel heater | 304 stainless steel heater |
| Structure / Power Rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW |
| Structure / Exhaust Hole | φ35mm top(with function of test hole) | φ35mm top(with function of test hole) | φ35mm top(with function of test hole) | φ35mm top(with function of test hole) | φ35mm top(with function of test hole) | φ35mm top(with function of test hole) |
| Controller / Temp. Control Mode | Two temperature section PID intelligent | Two temperature section PID intelligent | Two temperature section PID intelligent | Two temperature section PID intelligent | Two temperature section PID intelligent | Two temperature section PID intelligent |
| Controller / Temp. Setting Mode | Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting |
| Controller / Temp. Display Mode | Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display | Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display | Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display | Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display | Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display | Measure the temperature and display on the upper row of four digit nixie tube; Set temperature: four digit nixie tube lower display |
| Controller / Timer | 0-9999min(with timing wait function) | 0-9999min(with timing wait function) | 0-9999min(with timing wait function) | 0-9999min(with timing wait function) | 0-9999min(with timing wait function) | 0-9999min(with timing wait function) |
| Controller / Operation Function | Fixed temperature operation, timing function, auto stop. | Fixed temperature operation, timing function, auto stop. | Fixed temperature operation, timing function, auto stop. | Fixed temperature operation, timing function, auto stop. | Fixed temperature operation, timing function, auto stop. | Fixed temperature operation, timing function, auto stop. |
| Controller / Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
| Controller / Sensor | Pt100 | Pt100 | Pt100 | Pt100 | Pt100 | Pt100 |
| Specification / Inner Chamber Size(W×L×H)(mm) | 310×310×310 | 350×350×350 | 400×360×450 | 450×420×450 | 500×450×550 | 600×500×750 |
| Specification / Exterior Size (W×L×H)(mm) | 460×510×695 | 500×550×735 | 550×550×840 | 590×610×830 | 636×680×915 | 730×835×1250 |
| Specification / Packing Size (W×L×H)(mm) | 550×585×845 | 590×625×885 | 640×635×985 | 690×695×985 | 740×725×1085 | 730×835×1250 |
| Specification / Volume | 30L | 45L | 65L | 85L | 125L | 230L |
| Specification / Shelf Number（Max.） | 5 | 6 | 8 | 8 | 11 | 17 |
| Specification / Load Per Rack | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg |
| Specification / Shelf Space | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Specification / Current Rating (50/60Hz) | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/9.0A | AC220V/10.5A | AC220V/13.6A |
| Specification / NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 |
| Standard Accessories / Shelf | 2 | 2 | 2 | 2 | 2 | 2 |
| Standard Accessories / Shelf Frame | 4 | 4 | 4 | 4 | 4 | 4 |
| Optional Accessory | Shelf | Shelf | Shelf | Shelf | Shelf | Shelf |
Manufacturer catalogue checked 2026-09-28.
