Brand: Infitek | Category: Scientific & Laboratory Equipment

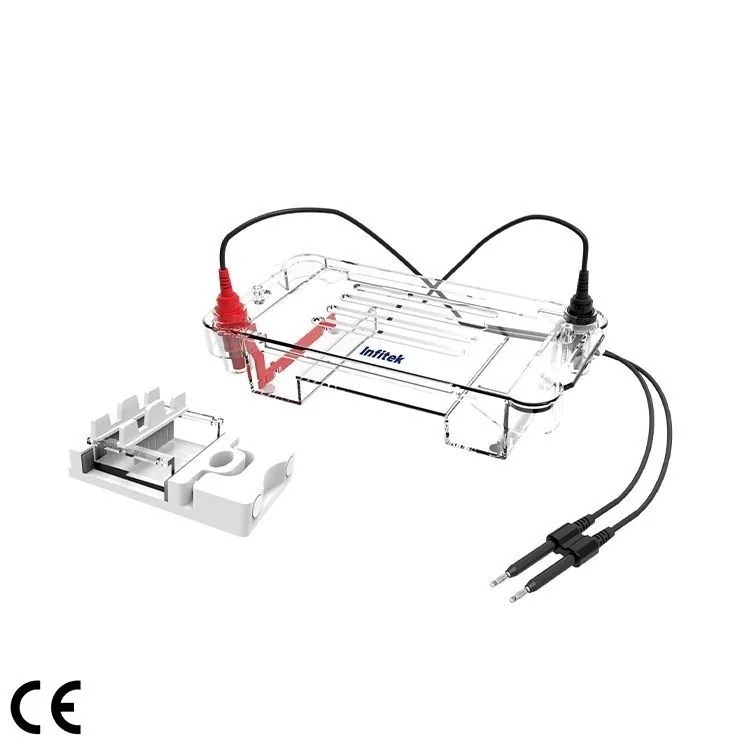

Infitek Horizontal Electrophoresis Cell, GEP-HH-SUB01 is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: parameter. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| model | parameter |
|---|---|
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Basic parameters: |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Overall dimensions (l× w× d): 200 * 100 * 100 |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Gel area (l× w): 75mm * 60mm |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Sample comb 1.0/1.5mm, 6/11 teeth |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Total buffer capacity: about 300ml；; |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Weight:1.4kg |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Package Dimension (W*D*H) (mm)：330*320*220 |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Features: Polycarbonate injection molding at one time, no leakage. |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | The design of cooling holes on the upper cover can effectively avoid condensation of water vapor. |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Special telescopic elastic glue maker ensures cleanliness and no glue leakage. |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Limit function, will not make the positive and negative electrodes installed backwards. |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | High-flexibility wire, open cover and power-off design to ensure safety; |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | The electrode can be replaced for easy maintenance; |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | 99.99% high purity platinum electrode has the best conductivity and corrosion resistance. |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Usage: This product is suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight. |
| Name | Quantity |
|---|---|
| Upper cover of electrophoresis cell (including wires) | 1set |
| Lower shell of electrophoresis cell (including electrodes) | 1set |
| Gel-making box | 1pc. |
| Gel tray | 1pc. |
| Sampling comb 1.0mm 6teeth | 2pcs. |
| Sampling comb 1.0mm 11 teeth | 2pcs. |
| Sampling comb1.5mm 6 teeth | 2pcs. |
| Sampling comb 1.5mm 11teeth | 2pcs. |
Manufacturer catalogue checked 2026-09-28.
