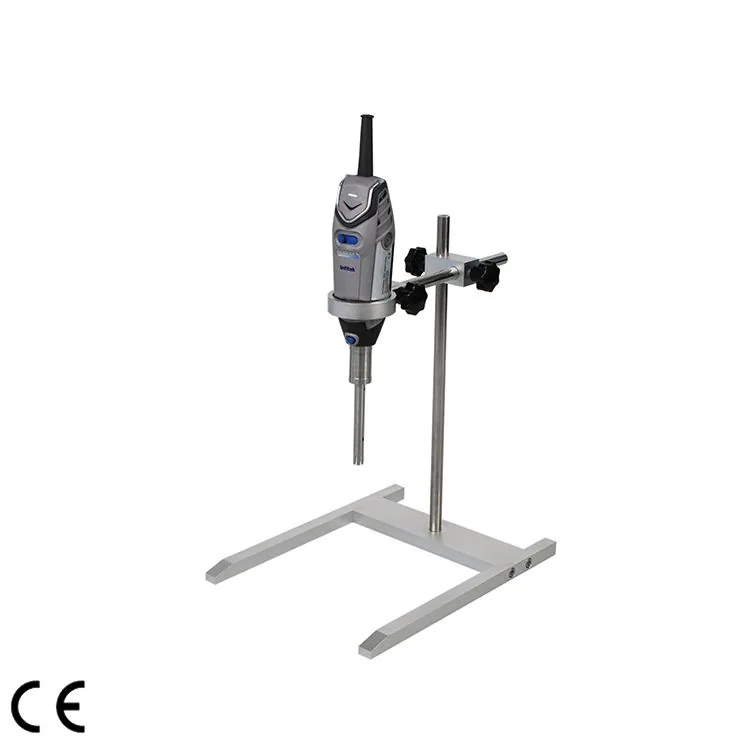

Infitek Homogenizer, Hand-held Type, HMG-160
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Homogenizer, Hand-held Type, HMG-160 is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published details include Max. Circum. Speed: 6.3-14m/sec; Working Volume (H_(2)O): 0.1-50mL (Dispersing shaft DS-160/5). Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | HMG-160 |
|---|---|
| Power Supply | 110V-120V/60Hz; 220-240V/ 0-60 Hz |
| Motor Type Universal motor | 160 W AC carbon brush motor |
| Speed Range | 8000rpm-32000rpm |
| Max. Circum. Speed | 6.3-14m/sec |
| Speed Control Dial knob | 10 stage |
| Working Volume (H_(2)O) | 0.1-50mL (Dispersing shaft DS-160/5) |
| Working Volume (H_(2)O) | 1-250mL (Dispersing shaft DS-160/10) |
| Max. Viscosity | 5,000mPas |
| Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
| Weight | 0.54 kg |
| Dimension (L×W×H) | 45mm×55mm×190mm |
| Noise | 72 dB(A) |
| Operating Environment | 0-40℃, 85% rel. humidity |
| Protection Class | IP20 |
Manufacturer catalogue checked 2026-09-28.
