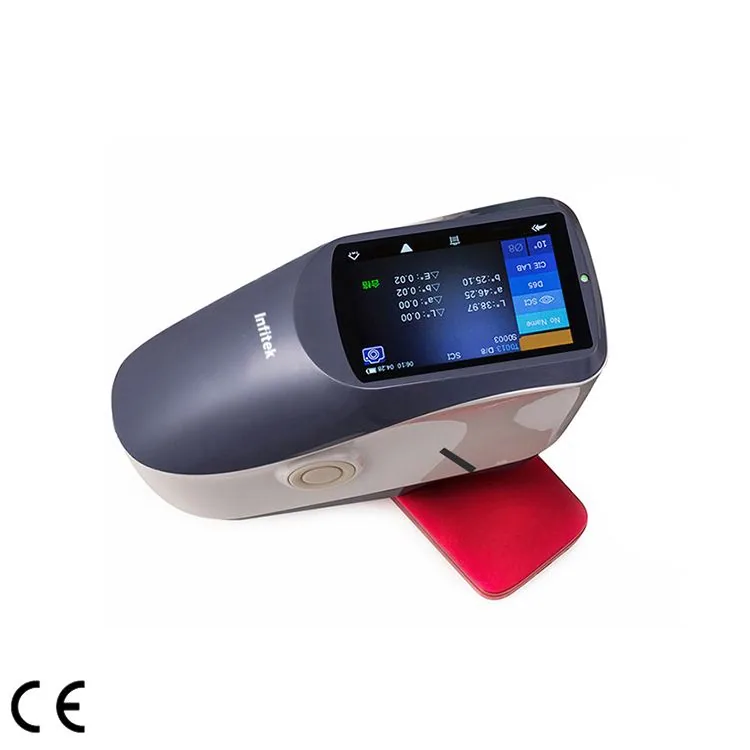

Infitek Grating Portable Spectrophotometer, SP-CLR456
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Grating Portable Spectrophotometer, SP-CLR456 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR456. Published details include Wavelength Range: 400~700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR456 |
|---|---|
| Illumination/Observation system | SP-CLR456(45 ring-shaped illumination, vertical viewing);; Comply with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 |
| Features | High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.; It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO,AATCC,Hunter)，; YI(ASTM D1925, ASTM 313),; MI (Metamerism Index),; Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | Notes: The specifications are subject to change without notice. |
Manufacturer catalogue checked 2026-09-28.
