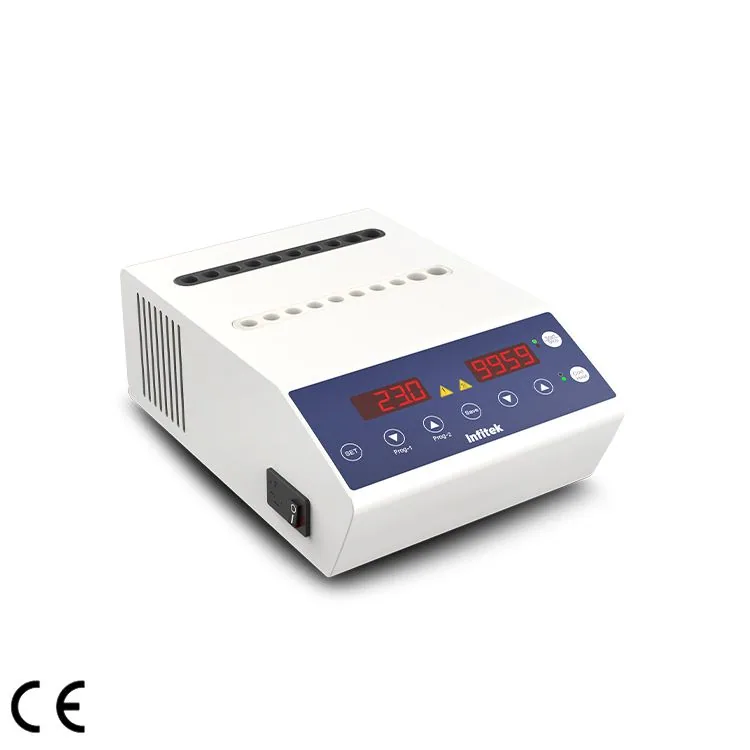

Infitek Gel Maker, DBI-GM5
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Gel Maker, DBI-GM5 is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: DBI-GM5. Published details include Capacity: 1-5mL,10 hole areas (Heating or cooling); Temperature Setting Range: 10-90℃. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DBI-GM5 |
|---|---|
| Capacity | 1-5mL,10 hole areas (Heating or cooling) |
| Temperature Setting Range | 10-90℃ |
| Temperature Control Accuracy | ±1℃ |
| Temperature Increments | 1℃ |
| Temperature Display | 0.1℃ |
| Safe Temperature | 110℃ |
| Timing Function | Yes |
| Time Setting Range | 0s-99min59s |
| Time Increments | 1s |
| Display | LED |
| Max. Heating Speed (RT.-90℃) | <10min |
| Max. Cooling Speed (90℃-RT.) | <4min |
| Run Time | Timing/continuous operation |
| Preloaded Program | 2 |
| Power | 260W |
| Electricity | AC 110/220V, 50/60Hz |
| Permissible Ambient Temperature and Humidity | 5-40℃, 80%RH |
| External Dimension(L*W*H) | 330*220*130mm |
| N.W./G.W. | 4.2kg/5.5kg |
| Shipping Dimension(L*W*H) | 405* 300* 215mm |
Manufacturer catalogue checked 2026-09-28.
