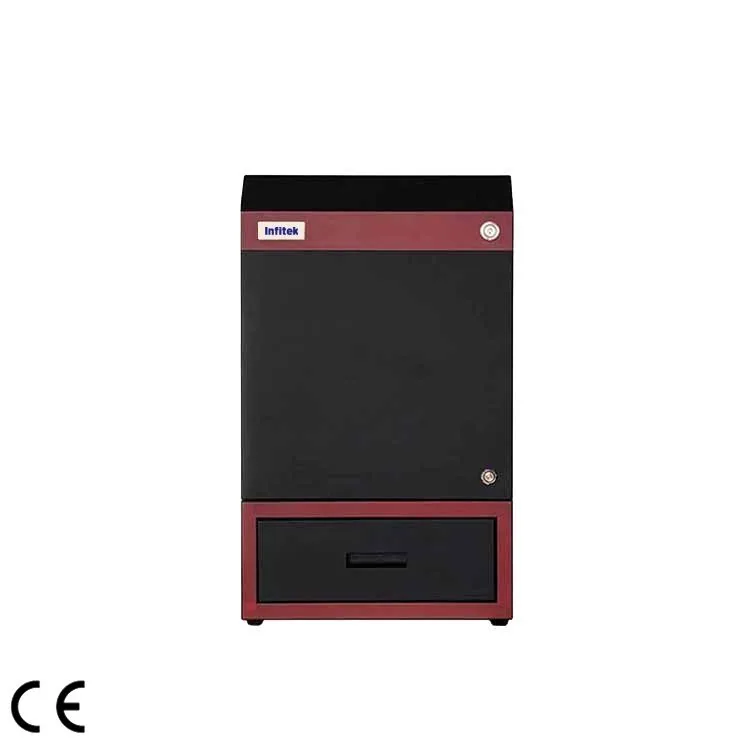

Infitek Gel Imaging System, GEP-GD100 GEP-GD1000
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Gel Imaging System, GEP-GD100 GEP-GD1000 is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: GEP-GD100, GEP-GD1000. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GEP-GD100 | GEP-GD100 | GEP-GD1000 |
|---|---|---|---|
| Pixel | 2592*1944(5.03MP) | 2592*1944(5.03MP) | 2592*1944(5.03MP) |
| Exposure Time | 1ms-3000ms | 1ms-3000ms | 1ms-3000ms |
| QE Value | High QE: ＞69% | High QE: ＞69% | High QE: ＞69% |
| Binning | 1*1 | 1*1 | 1*1 |
| Bit Depth | 16bit（0-65535） | 16bit（0-65535） | 16bit（0-65535） |
| OD | ≥4.8OD | ≥4.8OD | ≥4.8OD |
| Electric lens | 20 million pixel auto-focus lens | 20 million pixel auto-focus lens | 20 million pixel auto-focus lens |
| Trans-UV | 302nm,optional blue light transmissive configuration | 302nm,optional blue light transmissive configuration | 302nm,optional blue light transmissive configuration |
| Epi-White | LED Reflection (Cold Light) | LED Reflection (Cold Light) | LED Reflection (Cold Light) |
| Trans white | LED White light Self-Emitting Sample Plate | LED White light Self-Emitting Sample Plate | LED White light Self-Emitting Sample Plate |
| Epi-UV(Optional) | 254nm+365nm | 254nm+365nm | Select one set from optional configurations:254nm, 302nm, 365nm |
| Filters(Optional) | 590nm standard (others optional) | 590nm standard (others optional) | 590nm standard (others optional) |
| UV area | 21*21cm | 21*21cm | 21*21cm |
| Timing off | 1~60min | 1~60min | 1~60min |
| Dimensions | 360*375*605mm | 360*375*605mm | 380*405*695mm |
| Package Dimension (W*D*H) (mm) | 480*495*725 | 480*495*725 | 500*525*825 |
| Net Weight | 30.5kg | 30.5kg | 35.5kg |
Manufacturer catalogue checked 2026-09-28.
