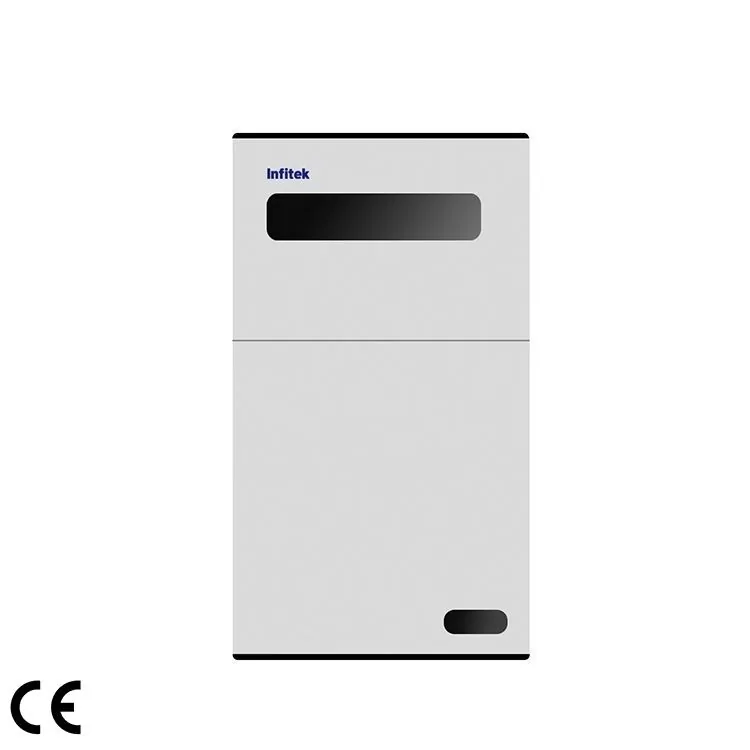

Infitek Fully Automatic Multifunctional Gel Imaging System, GEP-GD900MF is listed in VVON's electrophoresis & gel imaging range for Bangladesh. Published models: GEP-GD900MF. Match gel format, sample capacity, power supply and imaging method. For a quotation, send the gel type, sample count, detection method and imaging requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GEP-GD900MF |
|---|---|
| Pixel | 12MP |
| QE | High QE: >95% |
| Pixel Size | 4.63μm×4.63μm |
| Binning | 1×1, 2×2, 3×3, 4×4···8×8 |
| Exposure | 1ms-60min |
| Cooling Temperature | -65℃ |
| Bit | 16 bit (0-65535) |
| OD | ≥4.8OD |
| Electric Lens | F0.95 autofocus lens, optional F0.8 autofocus lens |
| RGB illumination | Standard LED 470nm, 520nm, 650nm (others optional) |
| UV Transmission | UV 302+365nm, Area:21*21cm |
| White Light Source | Double layer LED reflection on top and bottom, |
| White Light Source | LED white light self luminous sample board |
| UV Reflection | 254nm , optional 302nm , 365nm |
| Filter Wheel | 5-position filter wheel standard (others optional) |
| Filter Lens | Standard 535nm, 590nm, 605nm, 699nm，Optional 720nm, 820nm |
| Imaging Area | 28*21cm |
| Timed Shutdown | 1 ~ 60min |
| Temperature Control Platform | Optional |
| Anesthesia System | Optional |
| Dimension | 380*405*695mm |
| N.W./G.W. | 37kg/40kg |
| Shipping Dimension | 500*525*825mm |
Manufacturer catalogue checked 2026-09-28.
