Brand: Infitek | Category: Medical Equipment

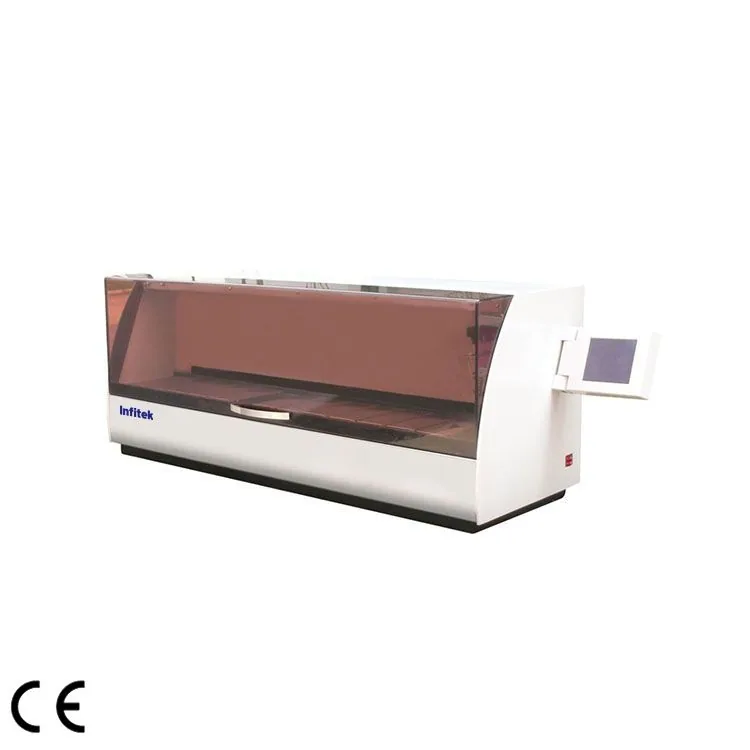

Infitek Fully Automated Tissue Slide Stainer, TSST-14 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: TSST-14. Published details include Capacity of Each Cup: 1500ml; Capacity of Staining Rack: 70pcs.. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TSST-14 |
|---|---|
| Number of Processing Cups: | 14 (12 cups for reagents, the one at the 8^(th) station for washout, and the one at the 1^(st) station for drying) |
| Capacity of Each Cup | 1500ml |
| Each Cup Processing Time | 0s~59min59s |
| Dripping Time | 0~30s |
| Temporary Cleaning Time | 0~59s |
| Number of Programs | 20sets |
| Programmable Dipping Sequence | 1~28pcs. |
| Capacity of Staining Rack | 70pcs. |
| Electricity | AC100V~120V/AC220V~240V, 50Hz/60Hz |
| Power | 500W |
| External Dimension | 1380*420*470mm |
| Net Weight | 70kg |
| Package Dimension (W*D*H) | 1310*550*590mm |
| G.W.(kg) | 105Kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
