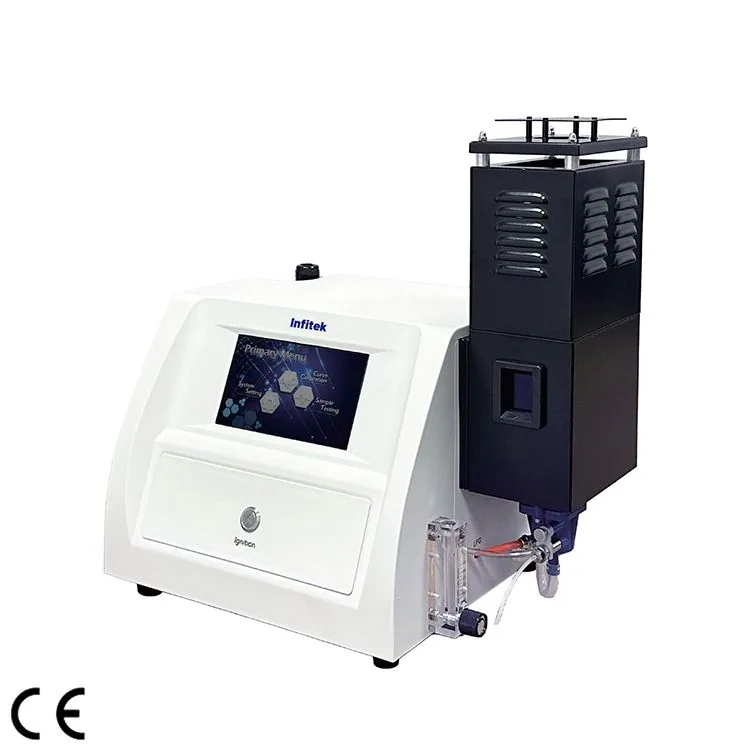

Infitek Flame Photometer, FP-I Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Flame Photometer, FP-I Series is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: FP-I6450, FP-I6440, FP-I6431, FP-I6430, FP-I6410, FP-I640. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FP-I6450 | FP-I6440 | FP-I6431 | FP-I6430 | FP-I6410 | FP-I640 |
|---|---|---|---|---|---|---|
| Testable | K, Na, Li, Ca, Ba | K, Na, Li, Ca | K, Na, Ca | K, Na, Li | K, Na | K, Na |
| Data range | 0.000～999.9 | 0.000～999.9 | 0.000～999.9 | 0.000～999.9 | 000.0～999.9 | 0000～9999 |
| Range ppm / K | 0.15-100 | 0.15-100 | 0.15-100 | 0.15-100 | 0.15-100 | 0.15-100 |
| Range ppm / Na | 0.18-100 | 0.18-100 | 0.18-100 | 0.18-100 | 0.18-100 | 0.18-100 |
| Range ppm / Li | 0.1-30 | 0.1-30 | ○ | 0.1-30 | ○ | ○ |
| Range ppm / Ca | 0-1000 | 0-1000 | 0-1000 | ○ | ○ | ○ |
| Range ppm / Ba | 0.1-300 | ○ | ○ | ○ | ○ | ○ |
| LOD ppm / K | ≤0.156 | ≤0.156 | ≤0.156 | ≤0.156 | ≤0.156 | ≤0.156 |
| LOD ppm / Na | ≤0.184 | ≤0.184 | ≤0.184 | ≤0.184 | ≤0.184 | ≤0.184 |
| LOD ppm / Li | ≤0.1035 | ≤0.1035 | ○ | ≤0.1035 | ○ | ○ |
| LOD ppm / Ca | ≤2 | ≤2 | ≤2 | ○ | ○ | ○ |
| LOD ppm / Ba | ≤6.028 | ○ | ○ | ○ | ○ | ○ |
| Linear error / K | ≤0.195 | ≤0.195 | ≤0.195 | ≤0.195 | ≤0.195 | ≤0.195 |
| Linear error / Na | ≤0.69 | ≤0.69 | ≤0.69 | ≤0.69 | ≤0.69 | ≤0.69 |
| Linear error / Li | ≤0.1449 | ≤0.1449 | ○ | ≤0.1449 | ○ | ○ |
| Linear error / Ca | ≤3 | ≤3 | ≤3 | ○ | ○ | ○ |
| Linear error / Ba | ≤9.402 | ○ | ○ | ○ | ○ | ○ |
| Operation mode | 7- inch color touch- screen | 7- inch color touch- screen | 7- inch color touch- screen | 7- inch color touch- screen | 7- inch color touch- screen | 7- inch color touch- screen |
| Display value | Concentration value | Concentration value | Concentration value | Concentration value | Concentration value | Optical power |
| Response time | <8s | <8s | <8s | <8s | <8s | <8s |
| Sample uptake | <3ml/min | <3ml/min | <3ml/min | <3ml/min | <3ml/min | <3ml/min |
| Stability | < 3% (15s ), ≤15%(6min ) | < 3% (15s ), ≤15%(6min ) | < 3% (15s ), ≤15%(6min ) | < 3% (15s ), ≤15%(6min ) | < 3% (15s ), ≤15%(6min ) | < 3% (15s ), ≤15%(6min ) |
| Reproducibility | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
| Curve graph | Display | Display | Display | Display | ○ | ○ |
| Printer | Optional build-in thermal printer | Optional build-in thermal printer | Optional build-in thermal printer | Optional build-in thermal printer | Optional build-in thermal printer | ○ |
| Output | USB | USB | USB | USB | USB | ○ |
| Fuel | LPG | LPG | LPG | LPG | LPG | LPG |
| Power | AC220V±10% 50Hz±1Hz,30W | AC220V±10% 50Hz±1Hz,30W | AC220V±10% 50Hz±1Hz,30W | AC220V±10% 50Hz±1Hz,30W | AC220V±10% 50Hz±1Hz,30W | AC220V±10% 50Hz±1Hz,30W |
| Package Dimension | 570*530*400mm 0.12m³ | 570*530*400mm 0.12m³ | 570*530*400mm 0.12m³ | 570*530*400mm 0.12m³ | 570*530*400mm 0.12m³ | 570*530*400mm 0.12m³ |
| G.W. | 18kg | 18kg | 18kg | 18kg | 18kg | 18kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
