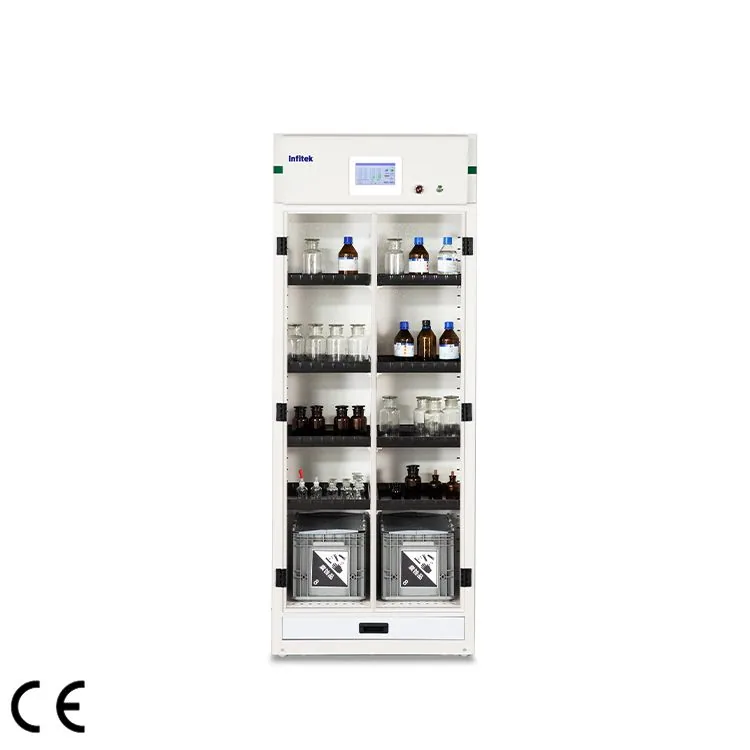

Infitek Filtered Storage Cabinet, CSC-F800, F820, F1600
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Filtered Storage Cabinet, CSC-F800, F820, F1600 is listed in VVON's laboratory furniture storage & safety range for Bangladesh. Published models: CSC-F800, CSC-F1600, CSC-F820. Match room layout, materials, storage compatibility and utility connections. For a quotation, send the room layout, dimensions, chemicals or stored items and utility connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| CSC-F800 | CSC-F820 | CSC-F1600 |
|---|
| Model | CSC-F800 | CSC-F1600 | CSC-F820 |
|---|---|---|---|
| Specification | Specification | Specification | Specification |
| External Dimension (H*W*D)(mm) | 2070*800*510mm | 2070*1600*510mm | 772*819*350mm |
| Internal Dimension (H*W*D)(mm) | 1604*797*475mm | 1604*1594*475mm | 520*816*338mm |
| Shelf | 8 | 16 | 2 |
| Compression of shelf | 30kg | 30kg | 30kg |
| Air Capacity(m/h) | 230m3/h | 230m3/h | 75m3/h |
| Capacity | 160 bottles(500ml ) | 320 bottles(500ml ) | 48 bottles (500ml ) |
| Noise | 40 dBA | 40 dBA | 40 dBA |
| Rated Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Electric Powder | 42w | 42w | 42w |
| Rated current | 2A | 2A | 2A |
| Configure | Configure | Configure | Configure |
| Filters(pcs) | 3 | 3 | 3 |
| Fans(pcs) | 1 | 1 | 1 |
| Door | Transparent door | Transparent door | Transparent door |
| Shelf | 8*movable PP pallet | 16*movable PP pallet | 2*movable PP pallet |
| Wheel | nylon wheels | nylon wheels | nylon wheels |
| Display screen | Yes | Yes | Yes |
| Power cord(pcs) | 1 | 1 | 1 |
| Control system(unit) | 1 | 1 | 1 |
| Temperature and humidity alarm system | Yes | Yes | Yes |
| VOC alarm | Yes | Yes | Yes |
| Optional parts | Optional parts | Optional parts | Optional parts |
| Light-blocking door | Light-blocking door | Light-blocking door | Light-blocking door |
| HCL Box | HCL Box | HCL Box | HCL Box |
| Filter | SFGL OG: Organic filter | SFGL OG: Organic filter | SFGL OG: Organic filter |
| Filter | SFGL AG: Inorganic filter | SFGL AG: Inorganic filter | SFGL AG: Inorganic filter |
| Filter | SFGL FO: Formaldehyde filter | SFGL FO: Formaldehyde filter | SFGL FO: Formaldehyde filter |
| Filter | SFGL AM: Ammonia filter | SFGL AM: Ammonia filter | SFGL AM: Ammonia filter |
| Filter | SFGL H14：HEPA filter | SFGL H14：HEPA filter | |
| Filter Alarm | Ammonia gas alarm | Ammonia gas alarm | Ammonia gas alarm |
| Filter Alarm | HCL alarm | HCL alarm | HCL alarm |
| Filter Alarm | Formaldehyde alarm | Formaldehyde alarm | Formaldehyde alarm |
Manufacturer catalogue checked 2026-09-28.
