Brand: Infitek | Category: Scientific & Laboratory Equipment

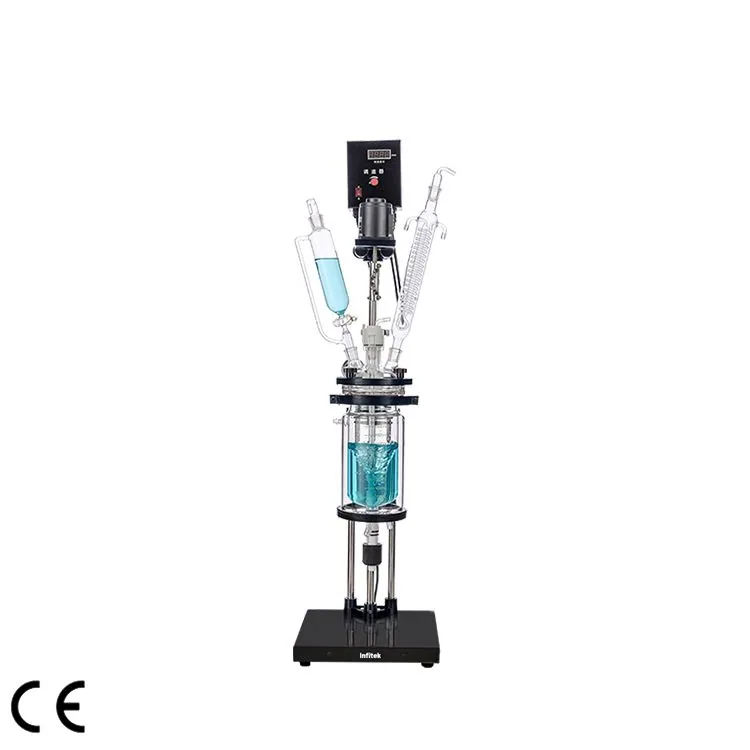

Infitek Double-layer Glass Reactor, GR-D5L is listed in VVON's sample digestion & laboratory reactors range for Bangladesh. Published models: GR-D5L. Published details include Kettle capacity: 5L Inner diameter 180mm outer diameter 230mm inner length 270mm; Mezzanine capacity: About 800ml. Match sample chemistry, vessels, working volume and operating conditions. For a quotation, send the sample chemistry, vessel type, volume, temperature and pressure requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | GR-D5L |
|---|---|
| Kettle capacity | 5L Inner diameter 180mm outer diameter 230mm inner length 270mm |
| Mezzanine capacity | About 800ml |
| Voltage frequency | 220V/50Hz |
| Mixing motor power | 90W |
| Stirring speed | 0-1100rpm/min |
| Kettle body temperature range | -80℃～+250℃ |
| Temperature measurement accuracy | ±1℃ |
| Vacuum degree | 0.098Mpa |
| Kettle cover Φ 205mm Five port / Mixing port | Φ 50mm Flange port |
| Kettle cover Φ 205mm Five port / Condensing port | 29# Standard port |
| Kettle cover Φ 205mm Five port / Constant pressure funnel port | 29# Standard port |
| Kettle cover Φ 205mm Five port / Decompression port | 24# Standard port |
| Kettle cover Φ 205mm Five port / Temperature measuring port | 24# Standard port |
| Stirring paddle | Φ10×600H(mm) Blade length125mm |
| Condenser | Φ60mm×450H(mm) Upper 24# standard port and lower 29# standard plug |
| Constant pressure funnel | 500ml The upper 24# standard port is equipped with a glass plug and the lower 29# standard plug |
| Pressure relief valve | 24# standard plug valve Outer diameter of vent nozzle 10mm |
| Temperature measuring port | 24# standard plug glass thermometer |
| Mezzanine inlet and outlet circulation | Φ 35 flange port supporting flange plate、outer diameter of adapter pagoda joint15mm |
| Discharge port | Φ18mm Discharge port Inclined discharge nozzleΦ12mm Off the ground350mm |
| Vacuum pumping head | 24#Glass suction head Outer diameter of nozzle10mm |
| Inlet and outlet circulating nozzle of condensing coil | External diameter 10mm |
| Dimensions(W*D*H) | 330×410×1480mm |
| Net weight | 28Kg |
| Package size | 1360*530*490mm Wooden box 0.36m³ |
| Packing weight | 51.5Kg |
Manufacturer catalogue checked 2026-09-28.
