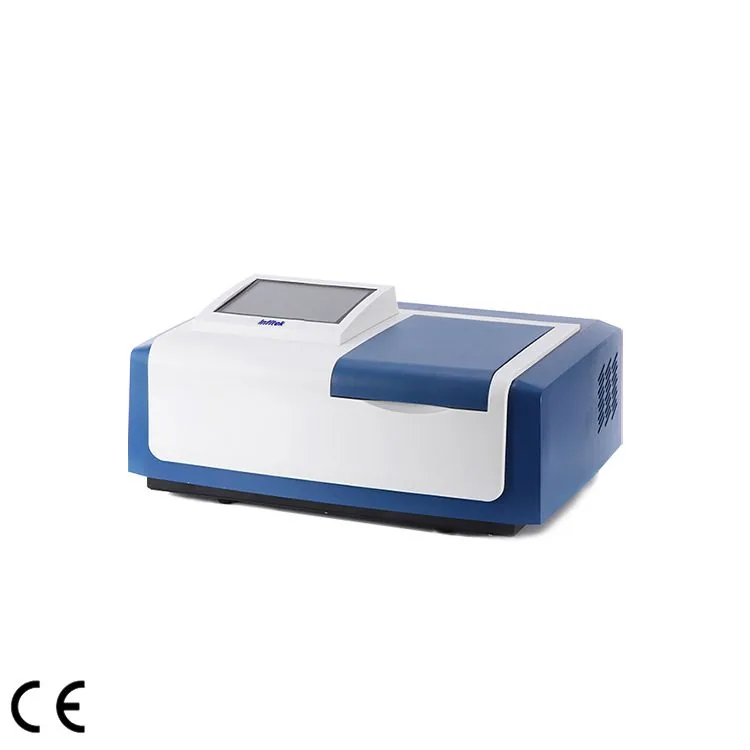

Infitek Double Beam UV-Vis Spectrophotometer SP-IUV7
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Double Beam UV-Vis Spectrophotometer SP-IUV7 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-IUV7. Published details include Wavelength Range: 190-1100nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-IUV7 |
|---|---|
| Optical System | Double-Beam System |
| Monochromator Type | Czerny-Turner |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Spectrum Bandwidth | 1.8nm |
| Photometric Accuracy | ±0.3%T; ±0.002Abs (0-0.5A); ±0.004 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.15%T; 0.001 Abs (0-0.5A); 0.002 Abs (0.5-1A) |
| Photometric Range | 0.0-200.0%T; -0.301-4.000A; 0.000-9999C |
| Stray Light | ≤0.03%T (at 220nm NaI, 360nm NaNo_(2)) |
| Baseline | ≤±0.002A (200-1090nm) |
| Drifting | ≤0.0009 Abs/30min (250nm and 500nm after 2h warm up) |
| Noise | 100%（T）noise≤0.15%(T), 0%（T）noise≤0.1%(T) |
| Scanning Speed | Fast-Medium-Slow |
| Grating | 1200 lines/mm |
| Detector | Silicon Photocell |
| Display | 8-inch color touch-screen |
| Power | AC220V±22V 50Hz±1Hz, 200W |
| Packaging Size (W*D*H) | 710mm×590mm×505mm 0.21M3 36kg |
| Operation manual | 1 |
|---|---|
| Glass cuvette | 1cm 4pcs |
| Quartz cuvette | 1cm 2pcs |
| Power cable | 1 |
| Fuse | 2pcs |
Manufacturer catalogue checked 2026-09-28.
