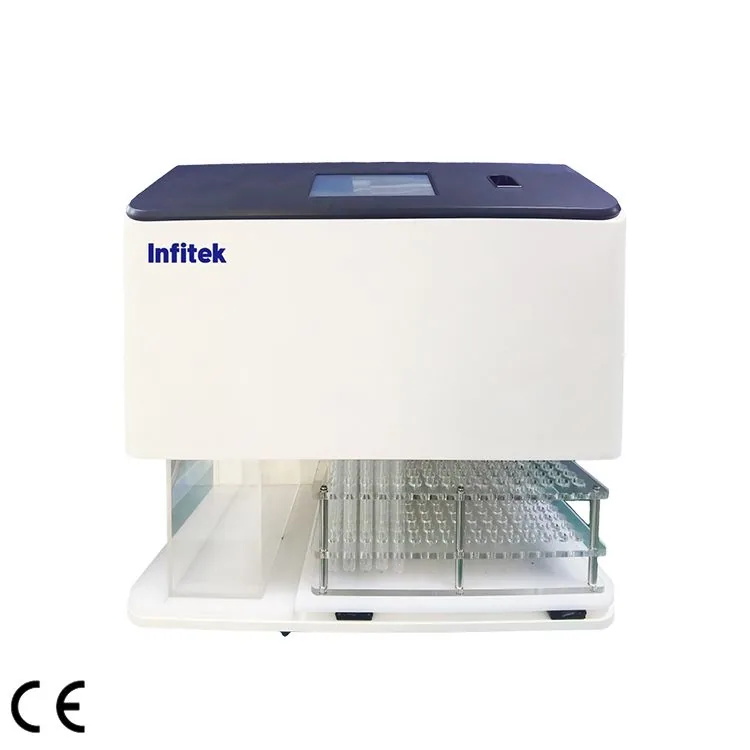

Infitek Dissolution Sampling System, DISS-Y8, DISS-Y12
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Dissolution Sampling System, DISS-Y8, DISS-Y12 is listed in VVON's pharmaceutical quality control instruments range for Bangladesh. Published models: DISS-Y8, DISS-Y12. Match dosage form, test method, throughput and documentation requirements. For a quotation, send the dosage form, test method, station count and documentation requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DISS-Y8 | DISS-Y12 |
|---|---|---|
| Sampling Channels | 8 | 12 |
| Sampling Times | 16 times | 16 times |
| Sampling Modes | Precision, Speed | Precision, Speed |
| Sampling Accuracy | RSD < 0.5% | RSD < 0.5% |
| Sampling Interval | 1 min ~ 999 h 59 min | 1 min ~ 999 h 59 min |
| Single Sampling Volume | 1 mL‑15 mL (expandable up to 30 mL) | 1 mL‑15 mL (expandable up to 30 mL) |
| Sampling Consistency | Channel-to-channel RSD ≤ 1% | Channel-to-channel RSD ≤ 1% |
| Sampling Repeatability | RSD ≤ 0.5% | RSD ≤ 0.5% |
| Syringe Specification | 26 mL, 0.5% accuracy | 26 mL, 0.5% accuracy |
| Test Tube Collection Volume | 15 mL | 15 mL |
| Dispensing Function | Available | Available |
| Liquid Replenishment Function | Equal‑volume liquid replenishment | Equal‑volume liquid replenishment |
| Initial Filtrate Volume | 0 mL–10 mL | 0 mL–10 mL |
| Initial Filtration | 10 μm columnar filter tips | 10 μm columnar filter tips |
| Inline Filter | φ25 mm, Luer-lock filter with 0.45 μm, 0.8 μm membrane pore size, cellulose material | φ25 mm, Luer-lock filter with 0.45 μm, 0.8 μm membrane pore size, cellulose material |
| Communication Interfaces | RS232, RS485, Network | RS232, RS485, Network |
| Privilege Management | 3 levels, 7 users | 3 levels, 7 users |
| Audit Trail | 128 entries × 366 days | 128 entries × 366 days |
| Login Method | Username + password, fingerprint | Username + password, fingerprint |
| Online Printing | Supported | Supported |
Manufacturer catalogue checked 2026-09-28.
