Brand: Infitek | Category: Scientific & Laboratory Equipment

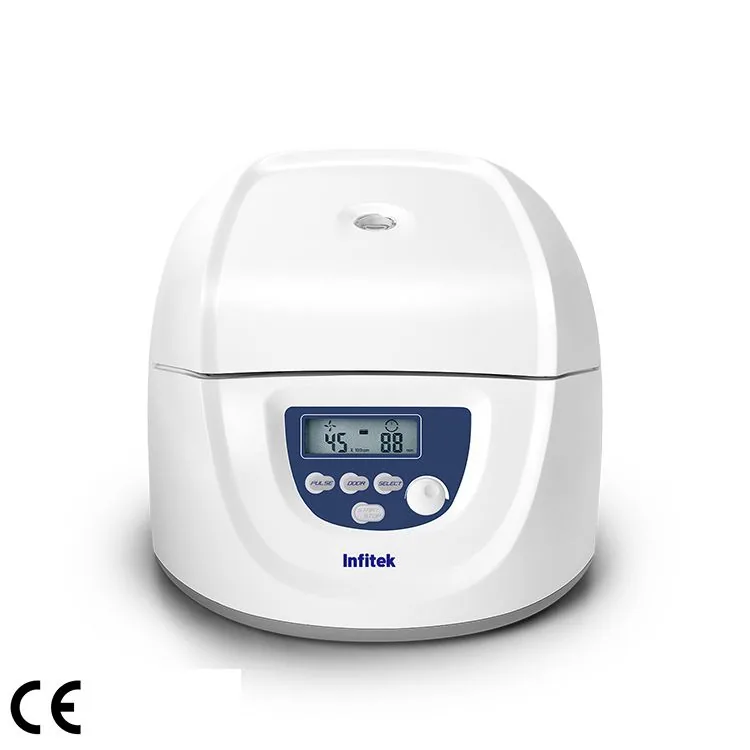

Infitek Clinical Centrifuge, Low speed, CFG-4.5D is listed in VVON's laboratory centrifuges range for Bangladesh. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | CFG-4.5D | CFG-4.5D(A6-50P) |
|---|---|---|
| Speed Range | 300-4500rpm,; increment: 100rpm | 300-4000rpm,; increment: 100rpm |
| Max. RCF | 2490×g | 1800×g |
| Speed accuracy | ±20rpm | ±20rpm |
| Rotor type | A12-10P(19400068) | A6-50P(19100197) |
| Run Time | 30sec-99min; HOLD (Continuous operation) | 30sec-99min; HOLD (Continuous operation) |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LCD |
| Safety Devices | Door interlock, Overspeed detector; Automatic internal diagnosis | Door interlock, Overspeed detector; Automatic internal diagnosis |
| Acceleration/Braking time | A12-10P: 20s↑13s↓ | A6-50P: 20s↑20 s /90 s↓ |
| Power | Single-phase,; 100V-240V,50Hz/60Hz, 3A; 70W | Single-phase,; 100V-240V,50Hz/60Hz, 3A; 70W |
| Dimension[W×D×H] | 354mm×304mm×215mm | 354mm×304mm×215mm |
| Weight | 6 kg | 6 kg |
| Advanced features | Speed/RCF switch; Short-time run function; sound-alert function | Speed/RCF switch; Short-time run function; sound-alert function |
| Cat. No.19400068 for CFG-4.5D Max. speed: 4500rpm Max. RCF: 2490×g Rotor capacity: 8x15mL,12x10mL Rotor material: High strength plastic |
| Cat. No.19100197 For CFG-4.5D(A6-50P) Max. speed: 4000rpm Max. RCF: 1800×g Rotor capacity: 50ml×6 or 15ml×6 Rotor material: High strength plastic |
| Available tubes | Tube quantity | Dimension (Ф×L, mm) | Maximum speed(rpm) | Radius (cm) | Maximum RCF (×g) |
|---|---|---|---|---|---|
| 15mL con | 8 | 17×120 | 4500 | 11 | 2490 |
| 1.5-5mL vacu | 12 | 13×75 | 4500 | 9.8 | 2218 |
| 4-7 mL vacu | 12 | 13×100 | 4500 | 11 | 2490 |
| 4-7 mL vacu | 12 | 16×75 | 4500 | 11 | 2218 |
| 8.5-10 mL vacu | 12 | 16×107 | 4500 | 11 | 2490 |
Manufacturer catalogue checked 2026-09-28.
