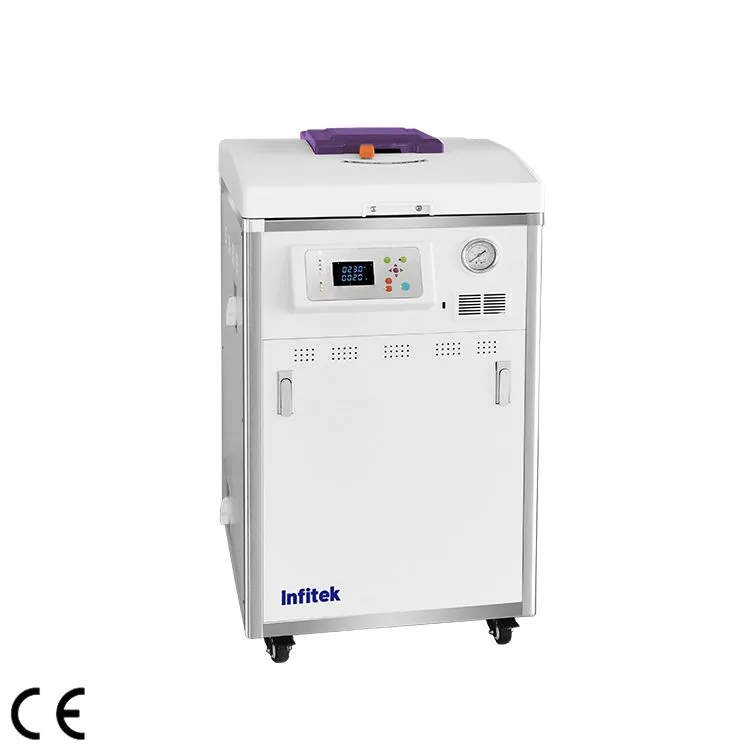

Infitek Class N Autoclave, STV-ML Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Class N Autoclave, STV-ML Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Published models: STV-M40L, STV-M60L, STV-M80L, STV-M40LA, STV-M60LA, STV-M80LA. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | STV-M40L | STV-M60L | STV-M80L |
|---|---|---|---|
| Model | STV-M40LA | STV-M60LA | STV-M80LA |
| Volume | 40L (φ350*400mm) | 60L (φ350*550mm) | 80L (φ350*700mm) |
| Basket Dimension (D*H) | 335*190mm | 335*360mm | 335*190mm /335*360mm |
| Configuration | Semi-auto/Full-auto | Semi-auto/Full-auto | Semi-auto/Full-auto |
| Material | Stainless steel | Stainless steel | Stainless steel |
| Pot Wall Thickness | 2.0mm (Reference) | 2.0mm (Reference) | 2.0mm (Reference) |
| Time Setting Range | 1~9999 min | 1~9999 min | 1~9999 min |
| Rated Working Pressure | 0.217MPa | 0.217MPa | 0.217MPa |
| Temp. Setting Range | 50~134℃ | 50~134℃ | 50~134℃ |
| Electricity | 220V/3.5kW | 220V/3.5kW | 220V/3.5kW |
| External Dimension | 570*690*1020mm | 570*690*1020mm | 570*690*1170mm |
| Gross Weight | 92kg/95kg | 98kg/100kg | 106kg/109kg |
| Package Dimension | 790*670*1160mm | 790*670*1160mm | 790*670*1320mm |
Manufacturer catalogue checked 2026-09-28.
