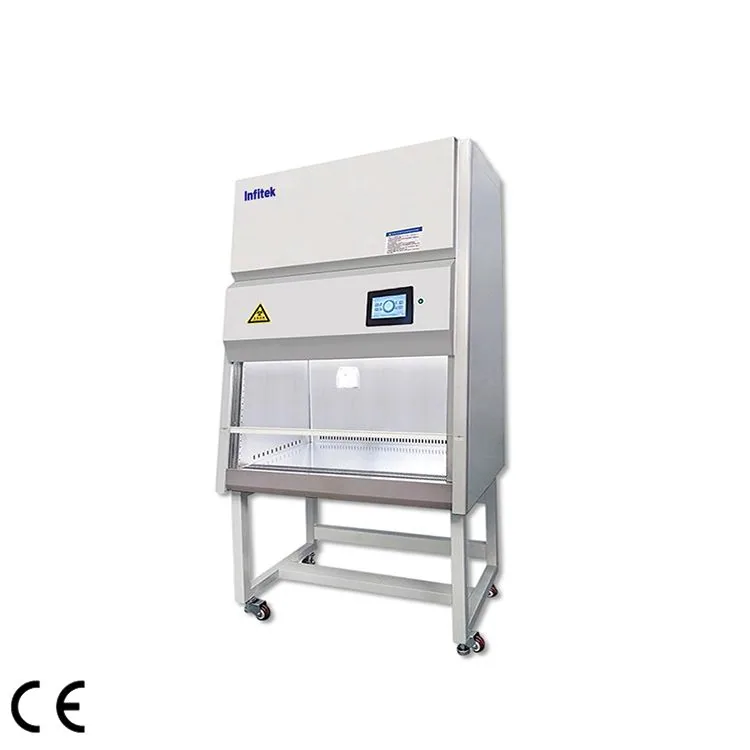

Infitek Class II Type A2 Biosafety Cabinets, BSC-IIA2-4J
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Class II Type A2 Biosafety Cabinets, BSC-IIA2-4J is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-IIA2-4J. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-IIA2-4J |
|---|---|
| Classification | Class II Type A2 |
| Cleanliness level | ISO level 4 |
| External Dimensions(W*D*H)(mm) | 1500*760*2200 |
| Working Zone Dimensions(W*D*H)(mm) | 1300*600*660 |
| Maximum Opening(mm) | 470 |
| Work Surface Height(mm) | About 770 |
| Base Height(mm) | About 660 |
| Filtration efficiency | ≥99.9995%，@0.12μm |
| Filters | ULPA(U15)*2pcs |
| Downflow air velocity（m/s） | 0.25～0.40 |
| Inflow air velocity（m/s） | ≥0.5 |
| Sound emission | ≤67dBA |
| Vibration peak | ≤5μm |
| Biological safety personnel protection | a.The total number of colonies in the impact sampler：≤10CFU/time |
| Biological safety personnel protection | b.Total colony count of the slot sampler：≤5CFU/time |
| Product protection | 1-8CFU/ml（repeat 3times，5min/time）total number of colonies：≤5CFU/time |
| Cross contamination protection | 1-8CFU/ml（repeat 3times，5min/time）total number of colonies：≤5CFU/time |
| Illumination | ≥1000Lux |
| LED lamp | 20W*2pcs |
| UV lamp | 30W*1pc |
| Applicable number of people | 1-2 |
| Wind direction | Top out |
| Supply and exhaust pipe diameter（mm） | Φ250 |
| Standard Accessories | UV lamp*1pc |
| Standard Accessories | LED lamp*2pcs |
| Standard Accessories | Waterproof socket*1pc |
| Standard Accessories | Filter：ULPA(U15)*2pcs |
| Optional Accessories | Water valve,Air valve,Armrest,RS232 interface,Waterproof socket |
| Electricity | AC220V,50/60Hz ; 1.5kW |
| Shipping Weight(kg) | 330 |
| Shipping Dimensions(W*D*H)(mm) | 1640*900*1900mm |
Manufacturer catalogue checked 2026-09-28.
