Brand: Infitek | Category: Scientific & Laboratory Equipment

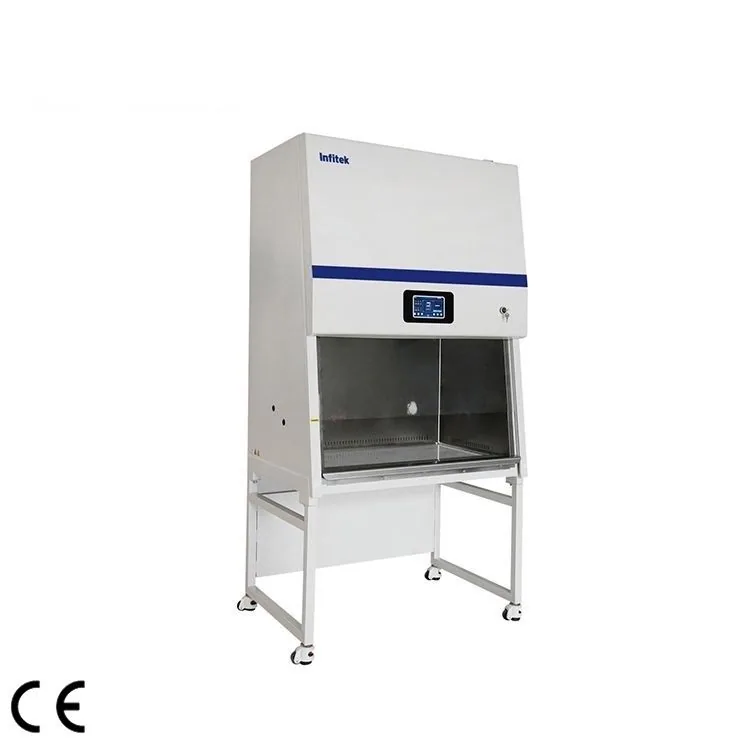

Infitek Class II Type A2 Biological Safety Cabinets, BSC-IIA2 Series is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-IIA2-1100, BSC-IIA2-1300, BSC-IIA2-1500, BSC-IIA2-1800. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-IIA2-1100 | BSC-IIA2-1300 | BSC-IIA2-1500 | BSC-IIA2-1800 |
|---|---|---|---|---|
| External Dimensions (W*D*H)(mm) | 1100*760*2200 | 1300*760*2200 | 1500*760*2200 | 1800*760*2200 |
| Internal Dimensions (W*D*H)(mm) | 940*600*660 | 1150*600*660 | 1350*600*660 | 1625*600*660 |
| Tested Opening | Safety height 200mm | Safety height 200mm | Safety height 200mm | Safety height 200mm |
| Max. Opening | 480mm | 480mm | 480mm | 480mm |
| Inflow Air Velocity | 0.53±0.025m/s | 0.53±0.025m/s | 0.53±0.025m/s | 0.53±0.025m/s |
| Down flow Air Velocity | 0.33±0.025m/s | 0.33±0.025m/s | 0.33±0.025m/s | 0.33±0.025m/s |
| ULPA Filter | 2pcs, 99.9995% efficiency at 0.12μm, filter life indicator | 2pcs, 99.9995% efficiency at 0.12μm, filter life indicator | 2pcs, 99.9995% efficiency at 0.12μm, filter life indicator | 2pcs, 99.9995% efficiency at 0.12μm, filter life indicator |
| Front Window | Motorized, 6mm two-layer laminated toughened glass, Anti UV | Motorized, 6mm two-layer laminated toughened glass, Anti UV | Motorized, 6mm two-layer laminated toughened glass, Anti UV | Motorized, 6mm two-layer laminated toughened glass, Anti UV |
| Sound Emission | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
| UV Lamp | 30W*1 | 30W*1 | 40W*1 | 40W*1 |
| LED Lamp | 12W*2 | 14W*2 | 16W*2 | 16W*2 |
| Illumination | ≥1000Lux | ≥1000Lux | ≥1000Lux | ≥1000Lux |
| Consumption | 600W | 800W | 1300W | 1300W |
| Waterproof Socket | Total load of two sockets:500W | Total load of two sockets:500W | Total load of two sockets:500W | Total load of two sockets:500W |
| Display | Color Touch Screen | Color Touch Screen | Color Touch Screen | Color Touch Screen |
| Control System | Microprocessor | Microprocessor | Microprocessor | Microprocessor |
| Airflow System | 70% air recirculation, 30% air exhaust | 70% air recirculation, 30% air exhaust | 70% air recirculation, 30% air exhaust | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Abnormal airflow velocity,filter replacement,front window at unsafe height,high filter pressure alarm,abnormal power failure | Abnormal airflow velocity,filter replacement,front window at unsafe height,high filter pressure alarm,abnormal power failure | Abnormal airflow velocity,filter replacement,front window at unsafe height,high filter pressure alarm,abnormal power failure | Abnormal airflow velocity,filter replacement,front window at unsafe height,high filter pressure alarm,abnormal power failure |
| Material | Work Zone: 304 stainless steel; Main Body:Cold-rolled steel with anti-bacteria powder coating | Work Zone: 304 stainless steel; Main Body:Cold-rolled steel with anti-bacteria powder coating | Work Zone: 304 stainless steel; Main Body:Cold-rolled steel with anti-bacteria powder coating | Work Zone: 304 stainless steel; Main Body:Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 770mm (Can be customized) | 770mm (Can be customized) | 770mm (Can be customized) | 770mm (Can be customized) |
| Caster | Footmaster caster | Footmaster caster | Footmaster caster | Footmaster caster |
| Electricity | AC 220V 50/60Hz; 110V/60Hz | AC 220V 50/60Hz; 110V/60Hz | AC 220V 50/60Hz; 110V/60Hz | AC 220V 50/60Hz; 110V/60Hz |
| Standard Accessories | LED lamp*2pcs, UV lamp*2pcs, Base stand*1pc, Foot switch*1pc, Drain valve*1pc, Water-proof socket*2pcs | LED lamp*2pcs, UV lamp*2pcs, Base stand*1pc, Foot switch*1pc, Drain valve*1pc, Water-proof socket*2pcs | LED lamp*2pcs, UV lamp*2pcs, Base stand*1pc, Foot switch*1pc, Drain valve*1pc, Water-proof socket*2pcs | LED lamp*2pcs, UV lamp*2pcs, Base stand*1pc, Foot switch*1pc, Drain valve*1pc, Water-proof socket*2pcs |
| Optional Accessories | Water and gas tap | Water and gas tap | Water and gas tap | Water and gas tap |
| N.W/G.W(kg) | 220/310 | 255/360 | 285/400 | 345/470 |
| Package Dimension (W*D*H) (mm) | 1250*1080*1870 | 1450*1080*1870 | 1650*1080*1870 | 1950*1080*1870 |
Manufacturer catalogue checked 2026-09-28.
