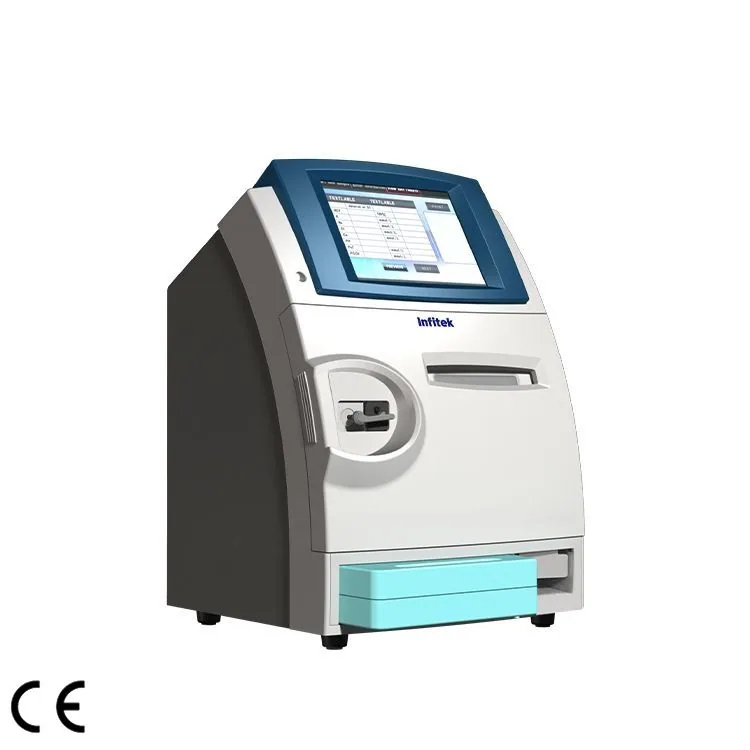

Infitek Blood Gas and Electrolyte Analyzer, BGA-95-8
Brand: Infitek | Category: Medical Equipment
Infitek Blood Gas and Electrolyte Analyzer, BGA-95-8 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published details include Sample volume: 95μL Whole blood 50uL Capillary blood. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Analyte | Measuring range | Unit |
|---|---|---|
| Hydrogen ion activity(pH) | 6.000―9.000 | pH scale |
| Carbon dioxide | 0.667―26.67 | kPa |
| partial pressure(pCO2) | 5.0―200.0 | mmHg |
| Oxygen partial pressure(pO2) | 0―106.7 | kPa |
| Oxygen partial pressure(pO2) | 0―800.0 | mmHg |
| Potassium ion(K+ ) | 0.50―10.00 | mmol/L |
| Sodiumion(Na+ ) | 50.0―200.0 | mmol/L |
| Chloride ion(Cl- ) | 20.0―200.0 | mmol/L |
| Ionized calcium(Ca++) | 0.10―5.00 | mmol/L |
| Hct | 12.0―65.0 | % |
| B.P. | 500―800 | mmHg |
| pH(TC) | pH temperature corrected |
|---|---|
| pCO_(2) (TC) | pCO_(2) temperature corrected |
| pO_(2) (TC) | pO_(2) temperature corrected |
| TCO_(2) | 0-50mmol/L |
| HCO_(3) | 0-50mmol/L |
| Be_(b) | -25.0-25mmol/L |
| Be_(ecf) | -25.0-25mmol/L |
| SBC | 0-50mmol/L |
| SO_(2)% | 40-100.0% |
| Ca++(7.4) | Ionized calcium“normalized” to pH 7.4 |
| TCa | Total calcium content |
| AG | Anion gap |
| RI | 0.0-70.0 |
| AaDO2 | 0-700mmHg |
| O2SAT | Oxygen Saturation |
| tHb(c) | Hemoglobin(Calculated) |
| Sample | Whole blood, Serum, Plasma, Dialysate, CSF |
|---|---|
| Test items | pH , pCO_(2)_(,) pO_(2)_(,) K^(+)^( ), Na^(+), Cl^(–) , Ca^(++), Hct |
| Input parameter | Patient temperature Hemoglobin FiO B.P. |
| Interface | Serial Line RS-232 TCP/IP interface USB port Integrated Bar-code reader |
| Analysis time | <90s |
| Sample volume | 95μL Whole blood 50uL Capillary blood |
| Calibration | Automatic， programmable 1-point and 2-point calibration |
| Data storage | >10000 |
| Display | 10.4” TFT touch screen |
| Battery | Nickel-metal hydride battery 3.0Ah |
| Printer | Build-in Thermal printer70mm |
| Barcode reader | Up to 14 kinds barcode type |
| Instrument(W*H*D) | 400*574*344mm |
| CAL PAK(W*H*D) | 258*180*70mm |
| AUTOQC(W*H*D) | 103*180*70mm |
| Weight | 30Kg |
| Work environment | 15℃~30℃ |
| Storage environment | 5℃~40℃ |
| Electricity | 100-240V~50/60Hz |
Manufacturer catalogue checked 2026-09-28.
