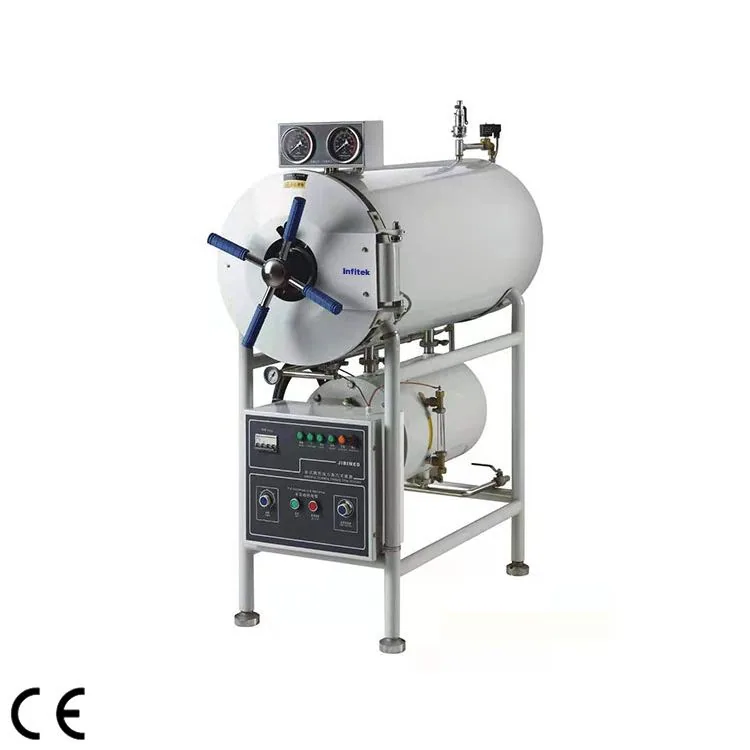

Infitek Autoclave, Class N, Horizontal Type, STH Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Autoclave, Class N, Horizontal Type, STH Series is listed in VVON's autoclaves & sterilisation equipment range for Bangladesh. Match chamber size, load type, cycle requirements and available utilities. For a quotation, send the load type, chamber capacity, cycle requirements and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Technical Data | STH-150 | STH-200 | STH-280 | STH-280 | STH-400 | STH-400 | STH-500 |
|---|---|---|---|---|---|---|---|
| Sterilizing Chamber | 150L | 200L | 280L | 280L | 400L | 400L | 500L |
| Volume | φ440×1000mm | φ515×1000mm | φ600×1000mm | φ600×1000mm | Φ700×1100mm | Φ700×1100mm | Φ700×1300mm |
| Working Pressure | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa |
| Working Temperature | 134℃ | 134℃ | 134℃ | 134℃ | 134℃ | 134℃ | 134℃ |
| Temperature Range | 105℃ – 134℃ | 105℃ – 134℃ | 105℃ – 134℃ | 105℃ – 134℃ | 105℃ – 134℃ | 105℃ – 134℃ | 105℃ – 134℃ |
| Time of Sterilization | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins |
| Time of Drying | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins | 0-60 mins |
| Heat Average | ≤±2℃ | ≤±2℃ | ≤±2℃ | ≤±2℃ | ≤±2℃ | ≤±2℃ | ≤±2℃ |
| Power | 9KW/380V 50/60Hz | 9KW/380V 50/60Hz | 9KW/380V 50/60Hz | 12KW/380V 50/60Hz | 12KW/380V 50/60Hz | 15KW/380V 50/60Hz | 15KW/380V 50/60Hz |
| External Dimension | 1350×600×1520 | 1400×670×1650 | 1400×670×1650 | 1400×770×1780 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport Dimension | 1560×750×1850 | 1560×820×1930 | 1560×820×1930 | 1680×920×1950 | 1680×920×1950 | 1600×1050×2050 | 1850×1050×2050 |
| G.W/N.W | 320/278 kg | 378/318 kg | 378/318 kg | 465/391 kg | 465/391 kg | 530/456 kg | 627/540 kg |
Manufacturer catalogue checked 2026-09-28.
