Brand: Infitek | Category: Scientific & Laboratory Equipment

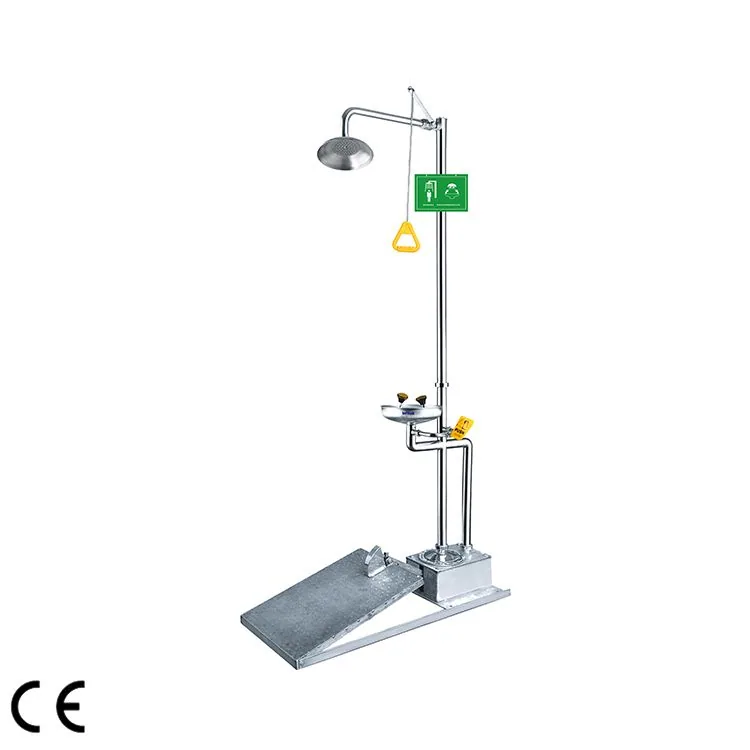

Infitek Anti-freezing emergency shower & eye wash, EEWS-326 is listed in VVON's laboratory furniture storage & safety range for Bangladesh. Match room layout, materials, storage compatibility and utility connections. For a quotation, send the room layout, dimensions, chemicals or stored items and utility connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Working principle of anti-scalding valve A thermal element is installed at the mixing outlet of the constant temperature water mixing valve, which uses the characteristics of the temperature sensing element to promote the movement of the valve core in the valve body and block or open the water inlets of cold and hot water. Turn on the hot water while blocking the cold water. When the temperature adjustment knob sets a certain temperature, no matter how the inlet temperature and pressure of cold and hot water change, the proportion of cold and hot water entering the outlet also changes, so that the outlet temperature remains constant. The temperature adjustment knob can be set arbitrarily within the specified temperature range of the product, and the water mixing valve will automatically maintain the outlet temperature. Note: After setting the temperature, turn it on when the temperature is low and turn off when the temperature is high to avoid burns. |
| Material | SS304 |
|---|---|
| Surface finishing | Fine-polished,high gloss epoxy powder coating |
| Features | The“Union” allows easier pipe connection and disconnection |
| Usage | Shower+Eyewash+Automatic emptying |
| Appropriate area | Low cold areas in the North |
| Switch ball valve | SS304 ball valve |
| Shower head | Spinning-formed with curled rim, diameter 250 mm |
| Pipe diameter | 48mm |
| Eyewash bowl features | 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing |
| Dust cover | Integrated with the spray head ( not connected by chain ) |
| Spray head feature | Patented design, each spray head equips with one water-flow control valve |
| Inlet thread | Rp1-¼” |
| Outlet thread | G1″ |
| Inlet height | 105mm |
| Outlet height | 105mm |
| Distance between spray head | 170mm |
Manufacturer catalogue checked 2026-09-28.
