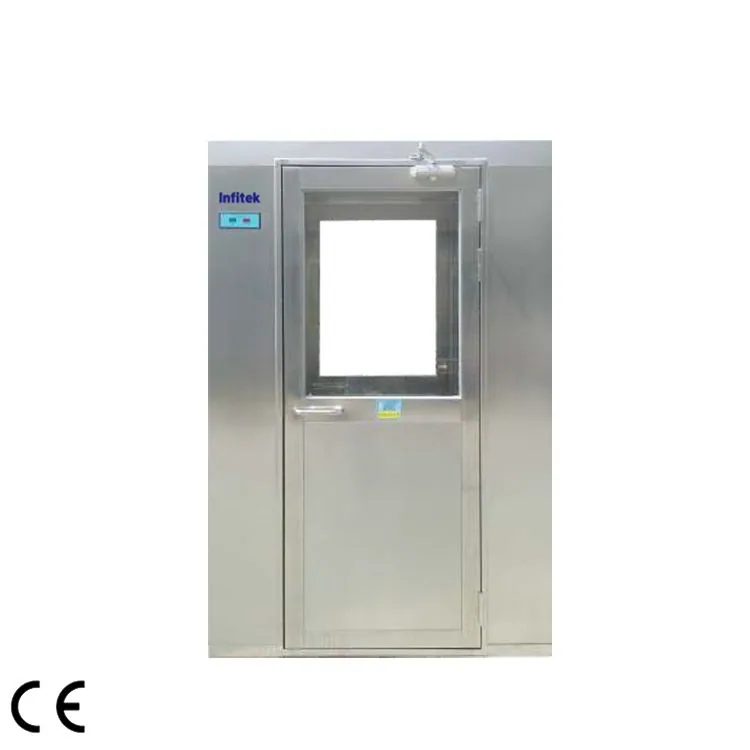

Infitek Air Shower, ASR-1400D
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Air Shower, ASR-1400D is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published details include Circulating air volume: 1500-2000m/h. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Product name | Air shower room |
|---|---|
| Overall material: | SUS304 stainless steel is used for the outer side and inner cavity of the box. Seamless welding and bending. |
| Filter efficiency | 99.95% (sodium flame test), ≥ 0.5μm |
| Spray ball airflow velocity | ≧24m/s |
| Spray ball diameter | 30mm |
| Air shower time | 0-99s |
| Spray ball material | Embedded, adjustable, high-quality stainless steel 304 mirror nozzle, can be adjusted universally to control the blowing part. |
| Circulating air volume | 1500-2000m/h |
| Electricity | 3N-380V–50Hz |
| Maximum power | About 2kW |
| Fan | Low noise centrifugal air shower fan |
| HEPA filter size | 600*600*120 (High-quality high-efficiency filter with partition H13 without partition, using nano-polymer structure, for particle size ≧ 0.5μm) dust should be ≧ 99.95% (sodium flame method test) |
| Primary filter size | 600*400 (Using high-quality primary G4, using nano-scale molecular structure, effectively filtering dust particles larger than 5μm) |
| Door opening method and material | Outward opening door；304 stainless steel wire drawing square tube thickness 1.2mm, glass window above, stainless steel sealing plate below. |
| Blowing way | Induction showering, digital display, voice prompt system, automatic showering device, automatic blowing shower nozzles on both sides, so as to achieve the effect of dust removal, and return to the bottom return air outlet with the air flow and can be recirculated and blown out after filtering. |
| Lighting device | Ceiling embedded LED round ultra-thin energy-saving purification lamp |
| Circuit control | Microcomputer integrated control circuit system, infrared automatic induction, intelligent voice prompt electronic interlock. The door is opened —- people enter —- the door is closed —- the automatic induction fan starts —- the timed time to blow the shower and stop —- go out. |
| Door opening time | When the door is opened, the light is on, and when there is no material sensing, the automatic extinguishing time can be set (0-99s). |
| External diameter(W*D*H） | 1400*1500*2100 mm |
| Internal diameter | Customizable |
| Package Dimension (W*D*H) | 1750*1520*2270mm |
Manufacturer catalogue checked 2026-09-28.
