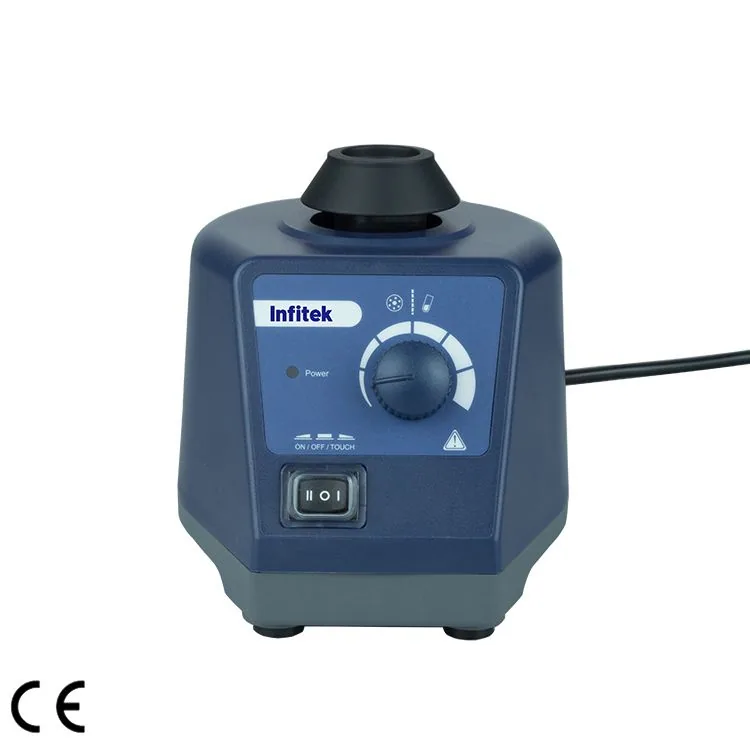

Infitek Adjustable Speed Vortex Mixer, VMX-S
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Adjustable Speed Vortex Mixer, VMX-S is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: VMX-S (Adjustable speed). Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | VMX-S (Adjustable speed) |
|---|---|
| Voltage | 110-120V/220-230V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0-3000rpm |
| Speed display | Scale |
| Run type | Touch operation |
| Dimension[W×H×D] | 127×130×160mm |
| Weight | 3.5kg |
| Permissible ambient temperature | 5-40℃ |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
| Standard top | After installation |
|---|---|
| VT1.1 For＜φ30mm tubes and small vessels | Touch mode (High speed area) Continuous mode (Low speed area) |
| Universal top plate | Platform pad | After installation |
|---|---|---|
| VT1.3 φ100mm; | VT1.3.6 φ99mm, multiple small tubes and vessels | Continuous mode (Low speed area) |
| Universal top plate | Tube adapter | After installation |
|---|---|---|
| VT1.3 φ100mm; | VT1.3.1 48×φ6mm(1mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.2 15×φ10mm(1.5-2mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.3 16×φ12mm(5mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.4 8×φ16mm(10mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.5 8×φ20mm(10-15mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.8 24×φ10mm(1.5-2mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.9 56×φ5mm(0.1-0.5mL PCR tubes, PCR strip tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.10 4×φ28mm(50mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.11 12×φ9.8mm+12×φ6.6mm+12×φ5mm(1.5/2.0/0.5/0.2mL tubes) | Continuous mode (Low speed area); |
| VT1.3 φ100mm; | VT1.3.12 30×φ9.8mm+55×φ6.6mm+44×φ5mm(1.5/2.0/0.5/0.2mL tubes) | Continuous mode (Low speed area); |
| Tube holding rod | Tube adapter | After installation |
|---|---|---|
| VT1.2; | VT1.3.1 48×φ6mm(1mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.2 15×φ10mm(1.5-2mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.3 16×φ12mm(5mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.4 8×φ16mm(10mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.5 8×φ20mm(10-15mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.8 24×φ10mm(1.5-2mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.9 56×φ5mm(0.1-0.5mL PCR tubes, PCR strip tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.10 4×φ28mm(50mL tubes) | Touch mode (High speed area) |
| VT1.2; | VT1.3.11 12×φ9.8mm+12×φ6.6mm+12×φ5mm(1.5/2.0/0.5/0.2mL tubes) | Touch mode (High speed area) |
| Microplate clamp | After installation |
|---|---|
| PS1.0 Include rectangle PCR tube adapter | Continuous mode (Low speed area) |
| Ampule/Tube Attachment | After installation |
|---|---|
| VT1.4 4pc ampule/tube(0.2-15mL) | Continuous mode (Low speed area) |
| Erlenmeyer flask attachment | After installation |
|---|---|
| VT1.5 100-250mL, Operating speed: 0-1500rpm | Continuous mode (Low speed area) |
Manufacturer catalogue checked 2026-09-28.
