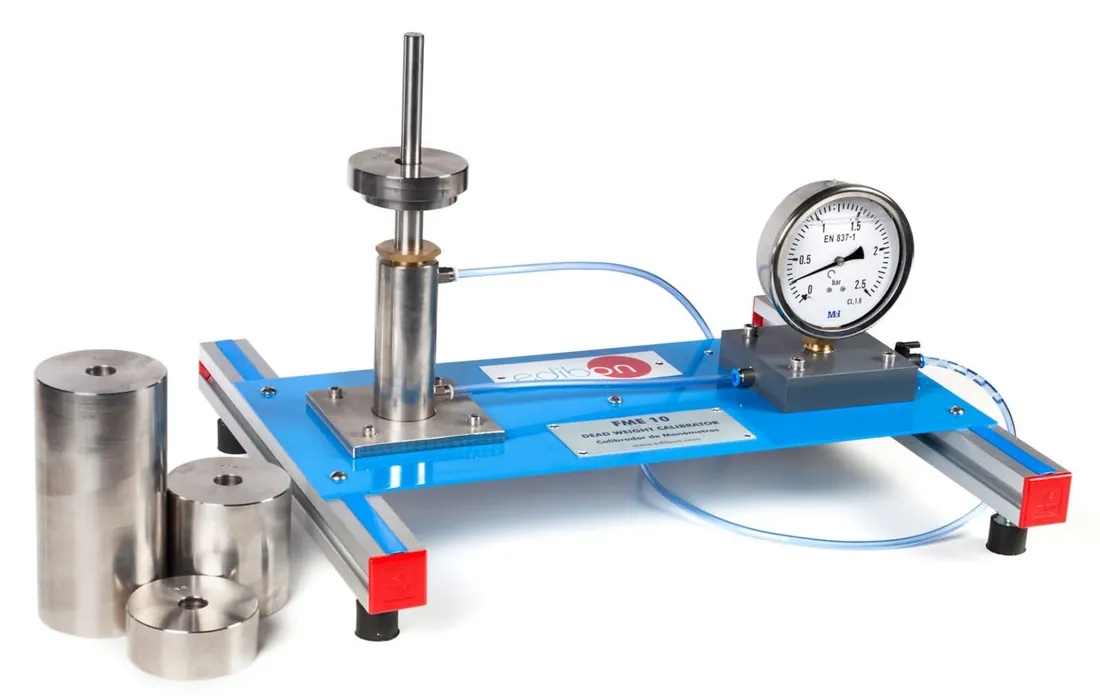

FME10: Deadweight Calibrator
Brand: EDIBON | Category: Scientific & Laboratory Equipment
FME10 is a dead weight tester for calibrating Bourdon type pressure gauges. Known weights are placed on a piston of known area to generate a reference pressure, so gauge readings can be checked and the calibration error plotted.
Technical Specifications
| Parameter | Value |
|---|---|
| Pressure manometer | Bourdon type; 0–2.5 bar |
| Piston diameter | 18 mm |
| Piston weight | 0.5 kg |
| Calibration masses | 0.5, 1.0, 2.5 and 5 kg approx. |
| Unit dimensions | 500 x 400 x 500 mm approx. |
| Unit weight | 10 kg approx. |
Selected data from the model-specific panel on page 5 of the manufacturer LIFLUBA brochure. Unit dimensions and weights are approximate. The hydraulic bench/feed system and other required elements may be supplied separately; confirm the current model, accessories and complete quotation scope. Checked 2026-09-29.
