Brand: EDIBON | Category: Scientific & Laboratory Equipment

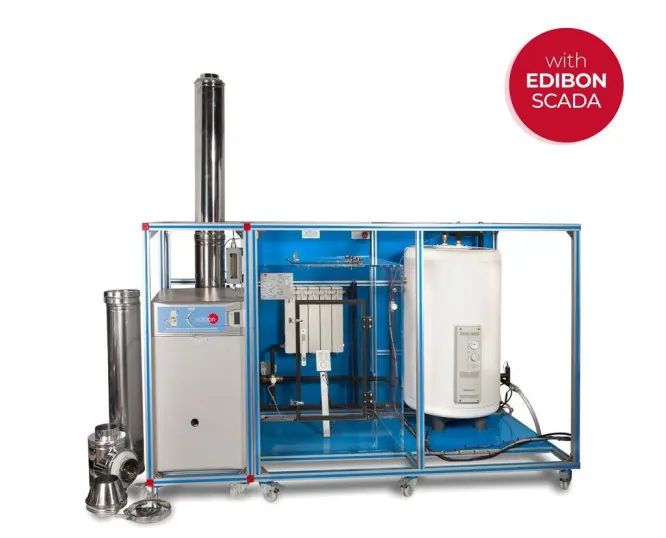

Low temperature gas oil boiler feeding two primary circuits, one to a domestic hot water cylinder and one to a radiator inside a methacrylate room. A portable analyser measures the flue gases so combustion efficiency can be assessed alongside the heating performance.
| Parameter | Value |
|---|---|
| Specification | Low temperature boiler working with gas oil, suitable for pressurised gas or gas oil burners |
| Specification | Boiler includes stage gas oil burner, circulating pump, closed expansion tank, safety valve, air purger and drainage valve |
| Specification | Electronic three way valve distributes heated water to the hot water tank and the radiator |
| Specification | Hot water tank with double jacket and solenoid valve on the mains water inlet |
| Specification | Five element finned radiator inside a methacrylate receptacle with room thermostat and PID control |
| Specification | Portable gas analyser measures CO, CO2, O2, combustion efficiency, excess air and gas temperature |
