Brand: ThorLabs | Category: Scientific & Laboratory Equipment

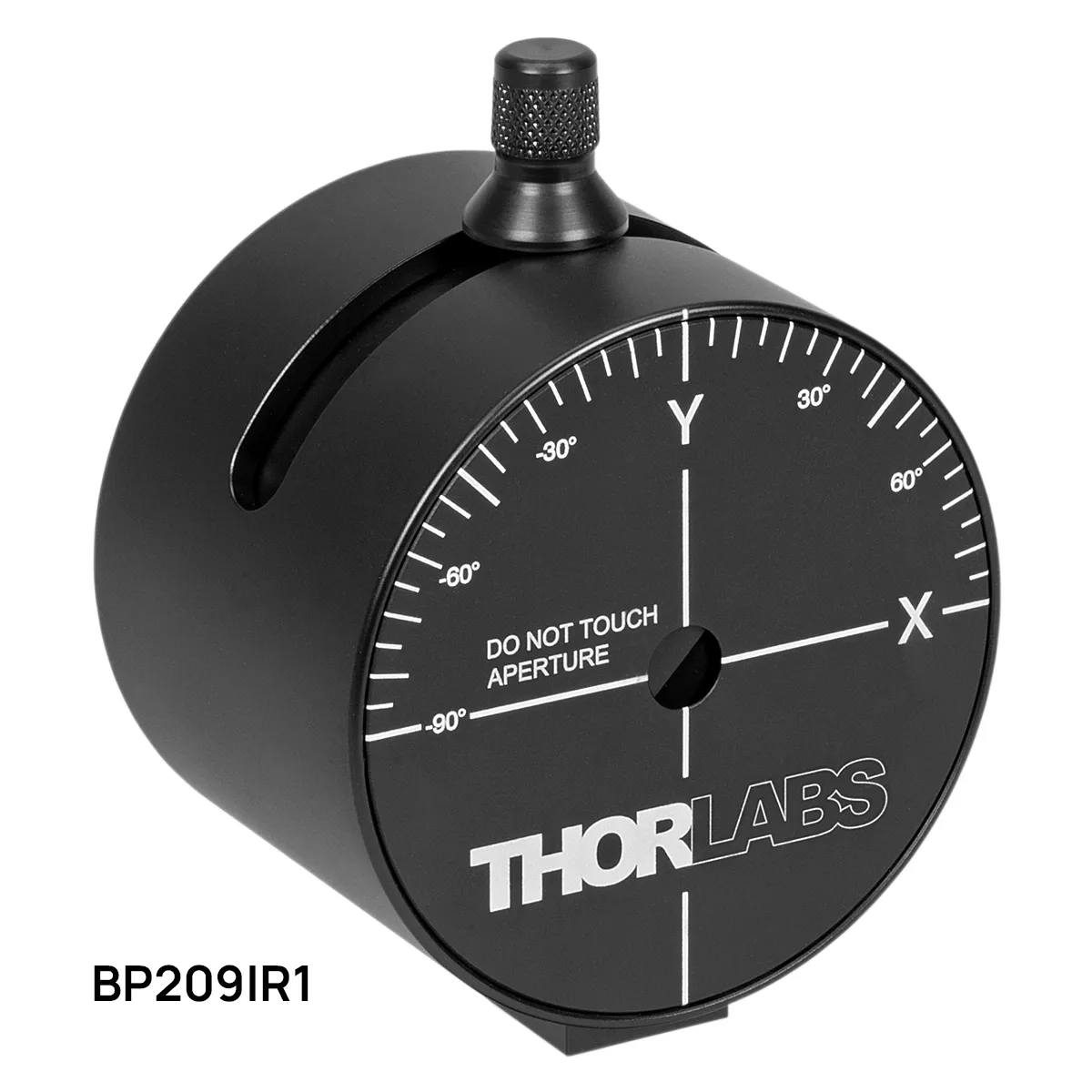

Dual scanning slit heads that reconstruct the two dimensional intensity profile of a near Gaussian beam, with a knife edge mode for very small spots. They measure beam width and position to ISO 11146 for continuous wave and pulsed lasers.
| Parameter | Value |
|---|---|
| Wavelength ranges | 200 to 1100 nm, 500 to 1700 nm and 900 to 2700 nm |
| Beam diameter range | 2.5 micrometres to 9 mm |
| Slit sizes | 5 micrometres and 25 micrometres; aperture diameter 9 mm |
| Scan rate | 2.0 to 20.0 Hz continuously variable |
| Power range | 1 microwatt to 10 W depending on beam diameter and model |
| Dynamic range | 78 dB; compliant with ISO 11146 |
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
Camera based profilers giving a full two dimensional analysis of a laser beam, including single pulse capture. Supplied with neutral density filter sets, they cover the deep ultraviolet or the visible and near infrared.
Sensors that pair a CMOS camera with a photolithographic microlens array to measure the wavefront of a beam and decompose it into Zernike terms. They are used for optical alignment, adaptive optics and lens testing.
Turnkey systems that measure laser beam quality, reporting M squared, divergence, focus diameter, waist position and Rayleigh length. Factory aligned optics and an internal translation stage automate the ISO 11146 measurement.
