Brand: BIOBASE | Category: Medical Equipment

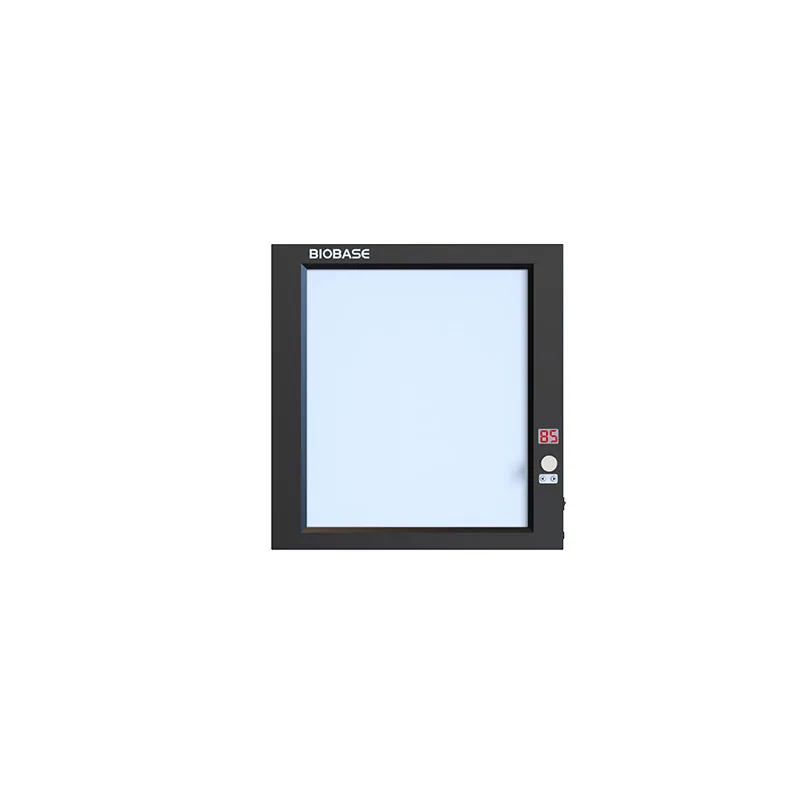

BIOBASE X-ray Film Viewing Lamp is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BH-GPD01, BH-GPD02, BH-GPD03, BH-GPD04. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BH-GPD01 | BH-GPD02 | BH-GPD03 | BH-GPD04 |
|---|---|---|---|---|
| Type | 1 Ray Light Panel | 2 Ray Light Panels | 3 Ray Light Panels | 4 Ray Light Panels |
| Light Color Temp. | ＞1000K | ＞1000K | ＞1000K | ＞1000K |
| Luminance Uniformity | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 |
| Max Luminance | ＞4500cd/m² | ＞4500cd/m² | ＞4500cd/m² | ＞4500cd/m² |
| Installation Method | Standard: Hanging typ; Optional: Bracket type | Standard: Hanging typ; Optional: Bracket type | Standard: Hanging typ; Optional: Bracket type | Standard: Hanging typ; Optional: Bracket type |
| Auto-induction | Insert automatically lights up, take off automatically, brightness memory | Insert automatically lights up, take off automatically, brightness memory | Insert automatically lights up, take off automatically, brightness memory | Insert automatically lights up, take off automatically, brightness memory |
| Light Source | LED cold light | LED cold light | LED cold light | LED cold light |
| Clamping device | Soft silicone | Soft silicone | Soft silicone | Soft silicone |
| External Size(mm) | 475*498*25 | 835*498*25 | 1195*498*25 | 1555*498*25 |
| Viewing Area(mm) | 360*420 | 720*420 | 1080*420 | 1440*420 |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Packing Size(mm) | 620*115*680 | 980*130*680 | 1350*130*680 | 1700*130*680 |
| Gross Weight(kg) | 4.7 | 9 | 10.3 | 12.2 |
Manufacturer catalogue checked 2026-09-28.
