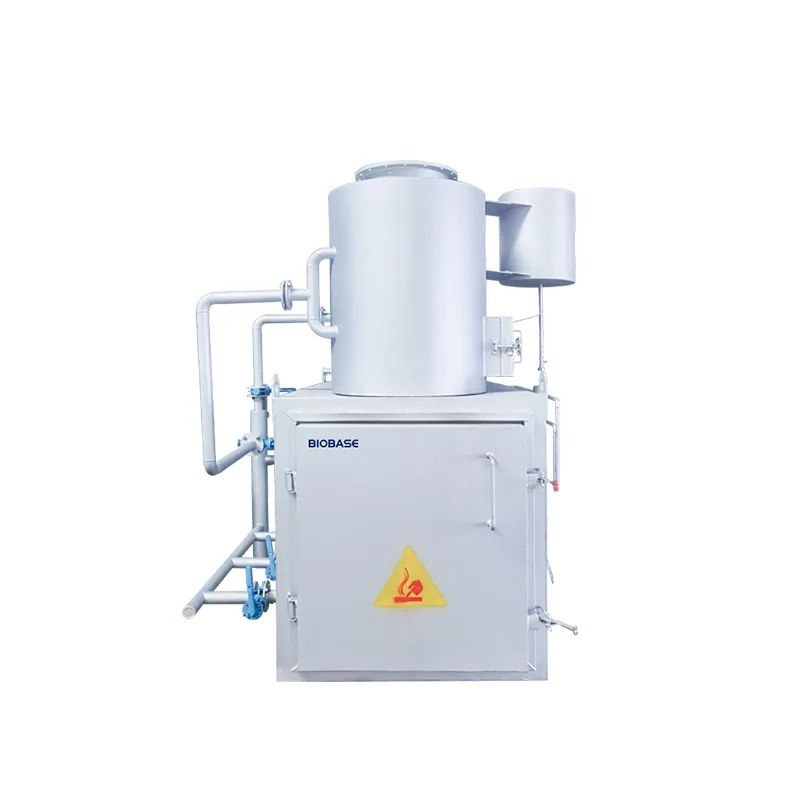

BIOBASE Waste Incinerator
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Waste Incinerator is listed in VVON's laboratory waste treatment range for Bangladesh. Published models: BK-HLPG-300. Published details include Primary Combustion Chamber(Main Body) / Capacity: 200~300kg/batch; Primary Combustion Chamber(Main Body) / Volume: 1.75m³. Match the waste stream, daily volume, process and installation requirements. For a quotation, send the waste stream, volume, process, site utilities and required documentation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-HLPG-300 |
|---|---|
| Quantity of Combustion Chamber | Dual |
| Refractory Material | Mullite, include 65% aluminium oxide |
| Refractory Temperature | 1350°C |
| Operational Temperature | 550~1350°C |
| Burner | Three burners |
| Burn Rate | 150~300kg |
| Fuel Consumption | 10~15kg(Diesel) |
| Flue Gas Retention | More than 2 seconds |
| Metal Thickness | 6mm |
| Emission Standard | Smokeless and odorless |
| Primary Combustion Chamber(Main Body) / Capacity | 200~300kg/batch |
| Primary Combustion Chamber(Main Body) / Material | Inner wall of the furnace: high aluminum refractory brick Vault: mullite castable, which is cast in one time There are observation holes and 2 burners |
| Primary Combustion Chamber(Main Body) / Working Temperature | 800~1000℃ |
| Primary Combustion Chamber(Main Body) / Volume | 1.75m³ |
| Primary Combustion Chamber(Main Body) / Furnace Door | 760*960mm |
| Primary Combustion Chamber(Main Body) / Inside Size(W*D*H) | 1850*900*1050mm |
| Secondary Combustion Chamber / Material | Q235B+refractory material(High temperature resistance up to 1350℃) |
| Secondary Combustion Chamber / Working Temperature | 1050~1200℃ |
| Secondary Combustion Chamber / External Size(W*H) | Φ1000*1260mm |
| Standard Accessory | Chimney |
| Optional Accessory | Natural gas burner |
| Power Supply | AC220V, 50/60Hz; 110V, 50/60Hz(Optional) With smoke filter equipment: external transformer Monomer: built-in transformer |
| External Size(W*D*H) | 2650*2200*3570mm |
| Package Volume | 20m³ |
| Net Weight | 8000kg |
| Gross Weight | 8500kg |
Manufacturer catalogue checked 2026-09-28.
