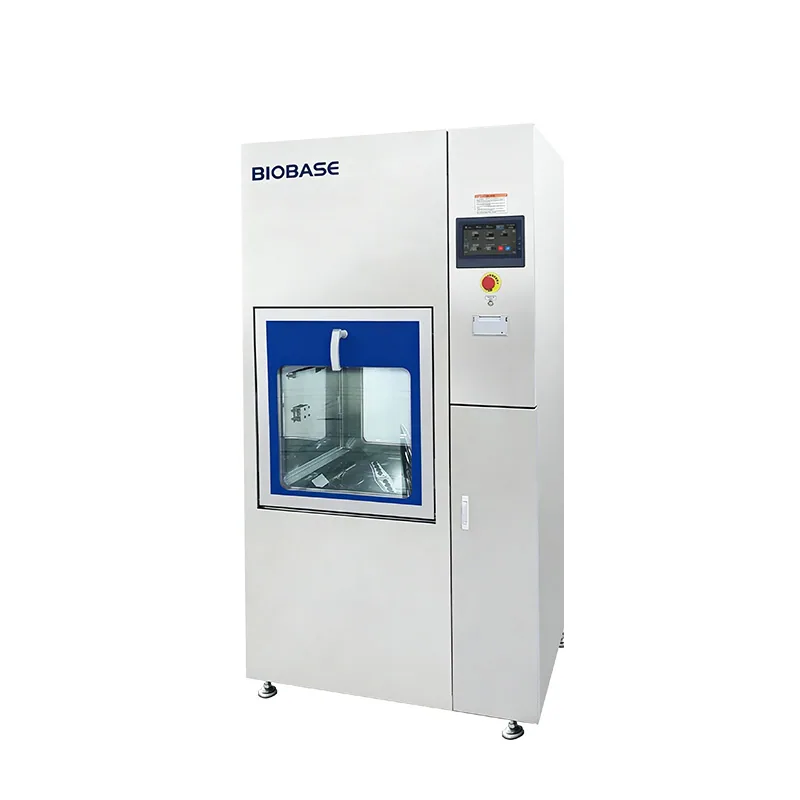

BIOBASE Washer Disinfector(Double Door Automatic Glassware Washer)

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Washer Disinfector(Double Door Automatic Glassware Washer) is listed in VVON's laboratory washers & ultrasonic cleaners range for Bangladesh. Published models: BK-LW220D, BK-LW320D, BK-LW420D. Match vessel size, load capacity, cleaning process and drying requirements. For a quotation, send the items to clean, load size, cleaning method and water connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications
ModelBK-LW220DBK-LW320DBK-LW320DBK-LW420DBK-LW420D
; ; ; ; ; Cleaning / Capacity220L320L320L420L420L
; ; ; ; ; Cleaning / Washer Load Level23322
; ; ; ; ; Cleaning / Water Wash Power0.75KW1.5KW1.5KW1.5KW1.5KW
; ; ; ; ; Cleaning / Water Heater Power5KW5KW15KW5KW15KW
; ; ; ; ; Cleaning / MAX. Power6KW7KW17KW7KW17KW
; ; ; ; ; Cleaning / Water Consumption/Step20L22L22L25L25L
; ; ; ; ; Cleaning / Tank Internal Temperature0~99℃0~99℃0~99℃0~99℃0~99℃
; ; ; ; ; Cleaning / Water Supply Pressure0.3~1.0Mpa0.3~1.0Mpa0.3~1.0Mpa0.3~1.0Mpa0.3~1.0Mpa
; ; ; ; ; Cleaning / Peristaltic Pump for Cleaning Agent2 independent pumps control detergent agent and neutralizing agent2 independent pumps control detergent agent and neutralizing agent2 independent pumps control detergent agent and neutralizing agent2 independent pumps control detergent agent and neutralizing agent2 independent pumps control detergent agent and neutralizing agent
; ; ; ; ; Cleaning / Cleaning Agent Level SensorYESYESYESYESYES
; ; ; ; ; Cleaning / Washing PumpSweden 800L/minSweden 1000L/minSweden 1000L/minSweden 1000L/minSweden 1000L/min
; ; ; ; ; Cleaning / Standard Cleaning Racks4 layers5 layers5 layers5 layers5 layers
; ; ; ; ; Cleaning / Standard Cleaning RacksBK01-220*1BK01-320*1BK01-320*1BK01-420*1BK01-420*1
Drying / Drying FunctionYESYESYESYESYES
Drying / Steam CondenserNONONONONO
Drying / Dry Power3.6KW3.6KW3.6KW3KW3KW
Control System and Traceability / Control System7" color LCD touch screen display, microprocessor7" color LCD touch screen display, microprocessor7" color LCD touch screen display, microprocessor7" color LCD touch screen display, microprocessor7" color LCD touch screen display, microprocessor
Control System and Traceability / Cleaning Program12 pre-set programs(editable)+100 PLC free programming12 pre-set programs(editable)+100 PLC free programming12 pre-set programs(editable)+100 PLC free programming12 pre-set programs(editable)+100 PLC free programming12 pre-set programs(editable)+100 PLC free programming
Control System and Traceability / Password Protection3 levels password3 levels password3 levels password3 levels password3 levels password
Control System and Traceability / Safety Emergency ButtonYES ;YES ;YES ;YES ;YES ;
Control System and Traceability / USB PortYESYESYESYESYES
Control System and Traceability / Integrated PrinterYESYESYESYESYES
Control System and Traceability / Online Monitor Performance of WashingOptionalOptionalOptionalOptionalOptional
Dimensions&Weight / Chamber Dimension(W*D*H)600*629*830mm600*629*990mm600*629*990mm688*700*703mm688*700*703mm
Dimensions&Weight / Exterior Dimension(W*D*H)960*805*1865mm960*805*2025mm960*805*2025mm1110*900*2165mm1110*900*2165mm
Dimensions&Weight / Package Dimension(W*D*H)1100*950* 2150mm1100*950*2180mm1100*950*2180mm1230*1070*2290mm1230*1070*2290mm
Dimensions&Weight / Net Weight(Host only)320kg340kg340kg370kg370kg
Dimensions&Weight / Gross Weight(Host with rack )420kg440kg440kg460kg460kg
Others / DoorDouble-layered glass door, 2 doors, manualDouble-layered glass door, 2 doors, manualDouble-layered glass door, 2 doors, manualDouble-layered glass door, 2 doors, electricDouble-layered glass door, 2 doors, electric
Others / Safety Door LockYESYESYESYESYES
Others / Built-in RO Water PumpYESYESYESYESYES
Others / Noise<55dB<55dB<55dB<60dB<60dB
Others / Optional AccessoriesTrolly(BK01)Trolly(BK01)Trolly(BK01)Trolly(BK01)Trolly(BK01)
Others / Power SupplyAC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional)AC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional)AC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional)AC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional)AC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional)

Manufacturer catalogue checked 2026-09-28.
