Brand: BIOBASE | Category: Scientific & Laboratory Equipment

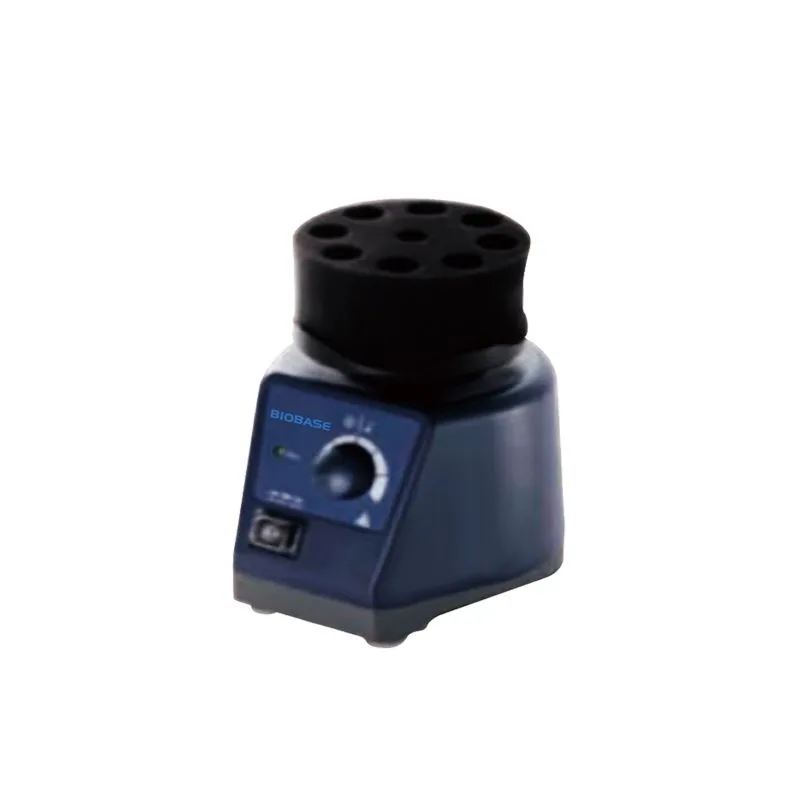

BIOBASE Vortex Mixer MX-S MX-F is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: MX-S, MX-F. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MX-S | MX-F |
|---|---|---|
| ltem No. | 8031102000 | 8031101000 |
| Shaking Mode | Orbital | Orbital |
| Orbital Diameter | 4mm | 4mm |
| Motor Type | Shaded pole motor | Shaded pole motor |
| Motor Input | 58W | 58W |
| Motor Output | 10W | 10W |
| Speed Range | 0~3000rpm | 0~3000rpm |
| Speed Display | Scale | / |
| Operation Mode | Continuous/touch operation | Continuous/touch operation |
| Ambient Temp. | 5~40℃ | 5~40℃ |
| Relative Humidity | 80%RH | 80%RH |
| Protection Type | IP20 | IP20 |
| Power Consumption | 60W | 60W |
| Power Supply | AC110/220V±10%, 50/60Hz(Customizable) | AC110/220V±10%, 50/60Hz(Customizable) |
| Standard Accessories | VT1.1 standard top | VT1.1 standard top |
| External Size(W*D*H) | 127*130*160mm | 127*130*160mm |
| Package Size(W*D*H) | 290*240*220mm | 290*240*220mm |
| Gross Weight | 3kg | 3kg |
| Accessories | MX-S(0~2500rpm) | MX-S(0~2500rpm) |
|---|---|---|
| Touch Mode(High Speed Area) | Continuous Mode(Low Speed Area) | |
| VT1.1 | Standard | Standard |
| VT1.2+VT1.3.1 | Optional | / |
| VT1.2+VT1.3.2 | Optional | / |
| VT1.2+VT1.3.3 | Optional | / |
| VT1.2+VT1.3.4 | Optional | / |
| VT1.2+VT1.3.5 | Optional | / |
| VT1.3+VT1.3.6 | Optional | |
| VT1.3+VT1.3.1 | / | Optional |
| VT1.3+VT1.3.2 | / | Optional |
| VT1.3+VT1.3.3 | / | Optional |
| VT1.3+VT1.3.4 | / | Optional |
| VT1.3+VT1.3.5 | / | Optional |
| Cat. No. | P/N |
|---|---|
| 18900034 | VT1.1 |
| 18900044 | VT1.2 |
| 18900505 | VT1.3+VT1.3.7 |
| 18900020 | VT1.3.1 |
| 18900021 | VT1.3.2 |
| 18900022 | VT1.3.3 |
| 18900023 | VT1.3.4 |
| 18900024 | VT1.3.5 |
| 18900043 | VT1.3.6 |
| 18900158 | VT1.3.7 |
| 18900395 | VT1.3.8 |
| 18204185 | VT1.3.9 |
| 18900855 | VT1.3.10 |
| 18900862 | VT1.3.11 |
| 18900875 | VT1.3.12 |
| 18204342 | PS1.0 |
| 18204566 | VT1.4 |
| 18204561 | VT1.5 |
Manufacturer catalogue checked 2026-09-28.
